012.18.0748.002.21.1504

012.18.0748.002.21.1504 Eight Point Contact Ball Slewing Ring Bearing
Part Number 012.18.0748.002.21.1504
Brand: LILY
|
Equivalent: ROTHEERDE
System of Measurement Metric
Series Series 01
Gear Internal Gear
Type Ball
Bearing Type Standard
Product Type Slewing Beraing
Inside Diameter Of Inner Ring 648 mm
Outside Diameter Of Outer Ring 734 mm
Internal Diameter On Outer Ring 823 mm
External Diameter On Inner Ring 710 mm
External Diameter On Outer Ring 678 mm
Height Of Overall Bearing Assembly 77 mm
Height Of Inner Ring 74 mm
Height Of Outer Ring 54 mm
Bolt Size 16 mm
Bolt Circle In Inner Ring 705 mm
Size Holes In Inner Ring 17.5 mm
Size Holes In Outer Ring 17.5 mm
Number Holes In Inner Ring 30
Number Holes In Outer Ring 30
Pitch Diameter Of Gear 660 mm
Module 6
Number Of Gear Teeth 110
Permissible Tooth Forces T 5231.25 lbs
Max Gear Tooth Load Fz 10462.5 lbs

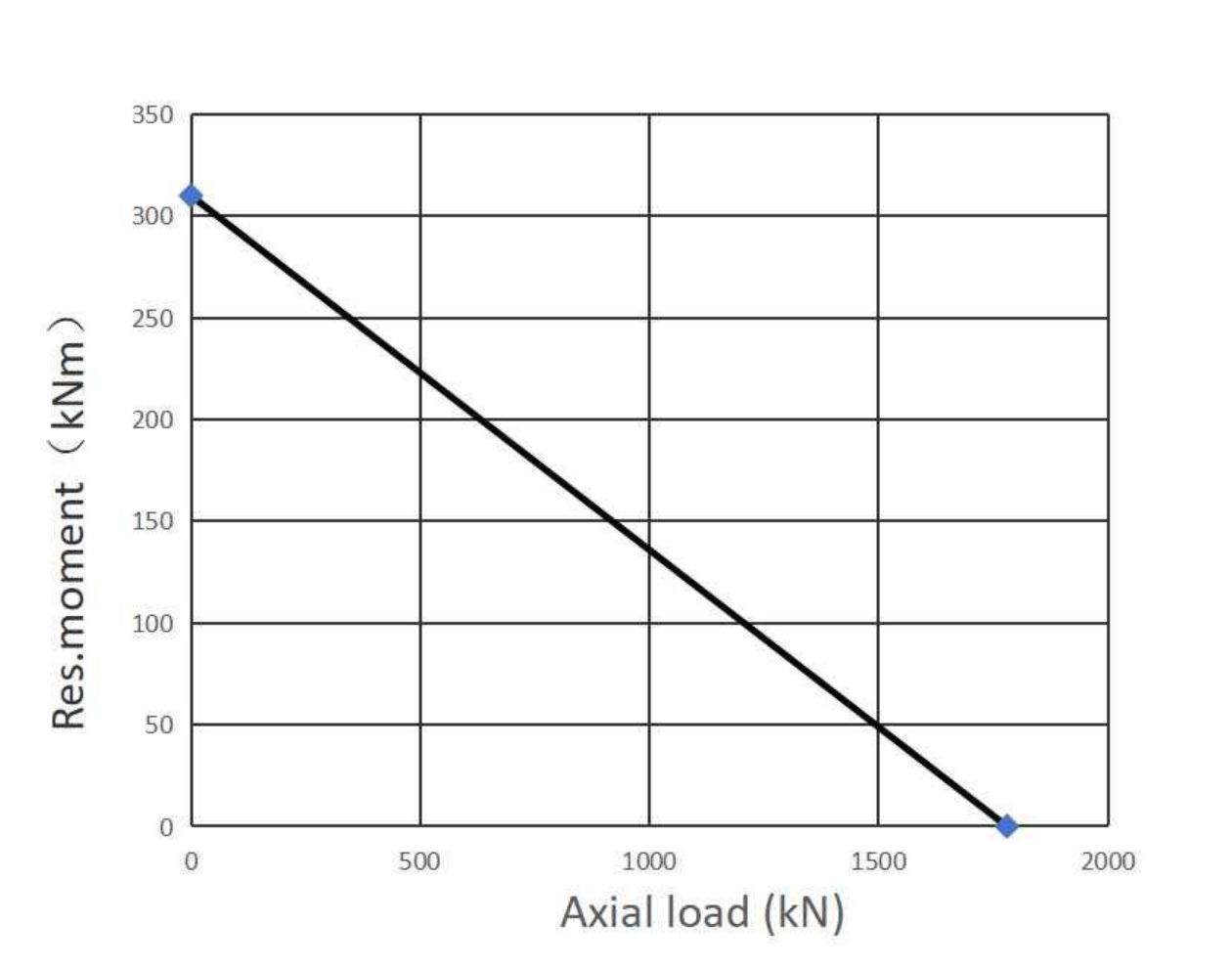

Correspond FIG2
Tooth Width 45 mm
Tooth Neck Height 9 mm
Ring Material 42CRO or 50MN
Ball Materrial Chrome Steel
Cage Material Nylon or 300 Series Stainless Steel
Seal Material NBR
RoHS Compliant
Weight 90 Kg
Diameter Of Bearing Raceway 748 mm
Distance Between Bottom Outer Ring/Inner Ring 3 mm
Distance at top Outer Ring/Inner Ring 23 mm
Thread Depth 30
Number Of Grease Nipples 4

Request a Quote

*
*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)
INTERCHANGE
The LILY bearing part series 012.18.0748.002.21.1504 is a potential replacement for these common bearing part numbers.
LILY
ROTHEERDE
L012.18.0748.002.21.1504
012.18.0748.002.21.1504
