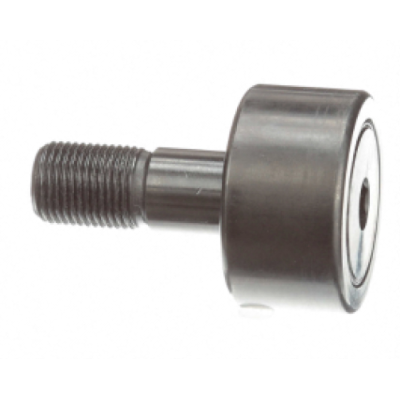

CFH 3 1/4 SB
Price $ 66.92
Part Number | CFH 3 1/4 SB |
Brand: LILY | Interchangeable With: McGill |
System of Measurement | Inch |
For Load Direction | Radial |
Roller Shape | Cylindrical |
Internal Construction | Full Complement |
Type | Heavy Duty Stud |
Mounting Method | Hex Hole |
Seal Type | Sealed |
Platform | Camrol |
Roller Material | Bearing Steel |
Roller Dia | 3.2500" |
Roller Width | 1.7500" |
Stud Dia | 1.5000" |
Stud Length | 2.5000" |
Threads | 1 1/2-12 |
Minimum Thread Length | 1.25" |
Shoulder Dia | 2.13" |
Shoulder Length | 0.03" |
Hex Socket | 0.75" |
Lubrication Fitting Size | 0.25" |
Oil Hole Center | 0.625" |
Oil Hole Diameter | 0.125" |
Clamping Torque | 5000 lbf |
Max Speed | 880 |
Static Radial Load | 31500 lbf |
Dynamic Radial Load | 15720 lbf |
RoHS | Compliant |
REACH | Compliant |
Weight | 5.01 LB |
