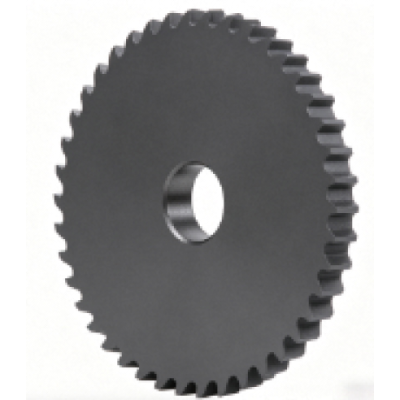

CGGENFAD
Price $ 29.70
| Part Number | CGGENFAD |
| System of Measurement | Metric |
| Gear Type | Spur |
| Pressure Angle | 20° |
| Component | Gear |
| Bore Type | Round |
| Module | 1 |
| Number Of Teeth | 50 |
| Gear Pitch Diameter | 50 mm |
| OD | 52 mm |
| Face Width | 6 mm |
| Overall Width | 14 mm |
| For Shaft Diameter | 8 mm |
| Material | Brass |
| Hub Diameter | 28 mm |
| Hub Width | 8 mm |
| Set Screw Thread Size | M5 |
| Includes | Set Screw |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (07/08/2021, 219 SVHC) Compliant |
INTERCHANGE
The LILY Bearing part series CGGENFAD is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CGGENFAD
