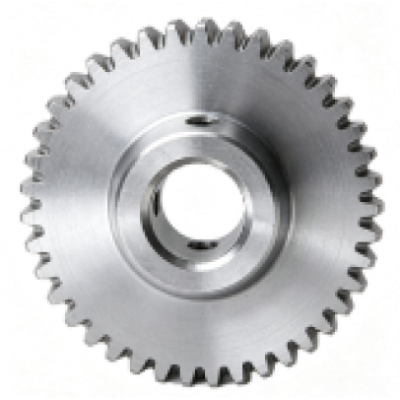

DHFHNEG
Price $ 54.64
| Part Number | DHFHNEG |
| System of Measurement | Metric |
| Gear Type | Spur |
| Pressure Angle | 20° |
| Component | Gear |
| Bore Type | Clamping |
| Module | 1 |
| Number Of Teeth | 35 |
| Gear Pitch Diameter | 35 mm |
| OD | 37 mm |
| Face Width | 6 mm |
| Overall Width | 16 mm |
| For Shaft Diameter | 8 mm |
| Material | 303 Stainless Steel |
| Teeth Heat Treatment | Not Hardened |
| Hub Diameter | 19 mm |
| Hub Width | 10 mm |
| Clamping Screw Thread Size | M3 |
| Includes | Clamping Screw |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (07/08/2021, 219 SVHC) Compliant |
INTERCHANGE
The LILY Bearing part series DHFHNEG is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
DHFHNEG
