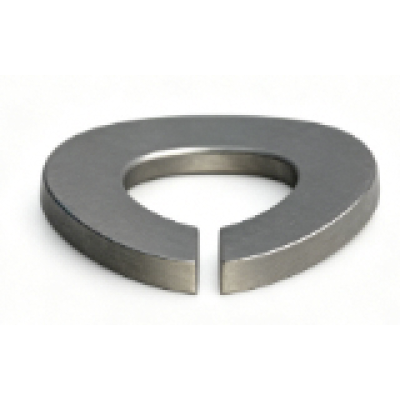

JBBGJADBI
Per Pack Price $ 6.00
Per Pack of 10
| Part Number | JBBGJADBI |
| System of Measurement | Metric |
| Material | Steel |
| For Screw Size | M10 |
| ID | 9.3 mm |
| OD | 17.0 mm |
| Thickness | 1.8 mm |
| Overall Height | 3.2 mm |
| Washer Type | Split Lock |
| Split Lock Washer Type | Curved |
| Hardness | Rockwell C44 |
| Specifications Met | DIN 6905 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | China |
INTERCHANGE
The LILY Bearing part series JBBGJADBI is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
JBBGJADBI
