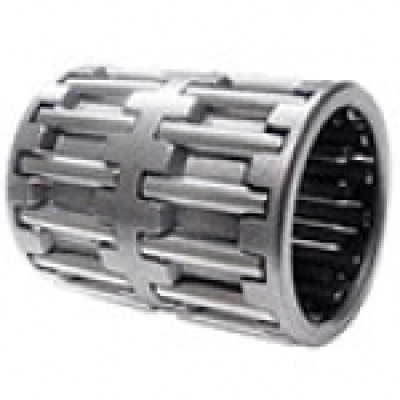

K68X74X35HZW
| Part Number | K68X74X35HZW |
Brand: LILY  |
Interchangeable With: KOYO |
| System of Measurement | Metric |
| Bearing Type | Needle |
| Construction | Double Row |
| Series | K Series |
| Bore Dia | 68 mm |
| Outer Dia | 74 mm |
| Width | 35 mm |
| Cage Material | Steel |
| Needle Material | Steel |
| Dynamic Radial Load | 45.1 kN |
| Static Radial Load | 111 kN |
| Max Speed (X1000 rpm) | 6.1 |
| Recommended dimensions - Shaft : S(max.) | 68.000 mm |
| Recommended dimensions - Shaft : S(min.) | 67.987 mm |
| Recommended dimensions - Housing : H(max.) | 74.029 mm |
| Recommended dimensions - Housing : H(min.) | 74.010 mm |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.120 kg |
