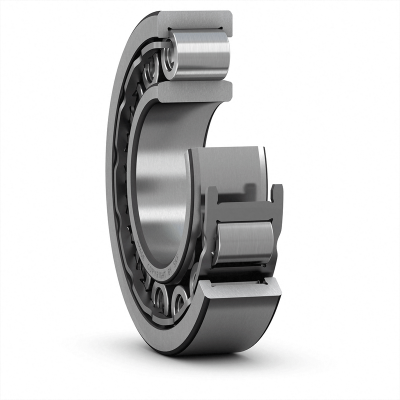

NU 18/1000 MA/HB1
| Part Number | NU 18/1000 MA/HB1 |
Brand: LILY  |
Interchangeable With: SKF |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined |
| Construction | Single Row |
| Inner Ring Type | With Inner Ring |
| Seal Type | Open |
| Bore Dia | 1000 mm |
| Bore Dia Tolerance | -0.10mm to 0 |
| Outer Dia | 1220 mm |
| Outer Dia Tolerance | -0.125mm to 0 |
| Width | 100 mm |
| Width Tolerance | -1.00mm to 0 |
| Shoulder Dia Of Outer Ring | 1143 mm |
| Raceway Diameter Of Inner Ring | 1053 mm |
| Chamfer Dimension r1,2(min.) | 6 mm |
| Permissible Axial Displacement(max.) | 12.1 mm |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Brass cage, outer ring centred |
| Dynamic Radial Load | 594000 lbf |
| Static Radial Load | 1473750 lbf |
| Max Speed (X1000 rpm) | 1 |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 265 kg |
