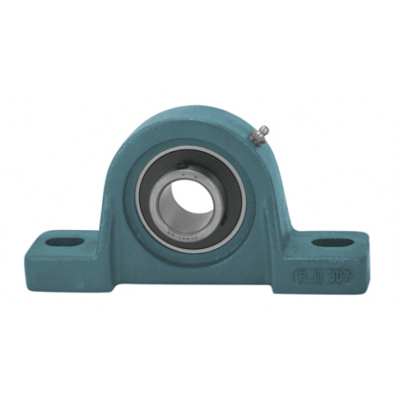

UCPU315-48
Price $ 142.46
Part Number | UCPU315-48 |
Brand: LILY | Interchangeable With: AMI |
System of Measurement | Inch |
Bearing Part Number | UC315-48 |
Housing Part Number | P-U315 |
Product Series | UCPU300 |
Bearing Type | Ball Bearing |
Mounted Type | Pillow Block Bearing |
Inner Ring Type | Wide Inner Ring |
Bearing Seal Type | Double Sealed |
Shaft Mount Type | Set Screw Locking |
Lubrication Fitting Tap | 1/8 27 NPT |
Bore Dia | 3" |
Bore Dia Tolerance | -0.0005" to 0" |
Bearing Width | 3.228" |
Mounting Bolt Size | 7/8" |
Center Height | 4 1/4" |
Overall Height | 8.295" |
Whole Length | 15 1/8" |
Whole Width | 4.000" |
Hole Length | 1.654" |
Hole Width | 1.024" |
Hole Ctr-to-Ctr Min | 11 1/4" |
Hole Ctr-to-Ctr Max | 12 3/4" |
Pillow Height | 1 3/4" |
Bearings Material | AISI 52100 Steel |
Housing Material | Iron |
Lubrication | Required |
Temperature Range | -30° to 110 °C |
RoHS | Compliant |
REACH | Compliant |
Weight | 37.12 lb |
