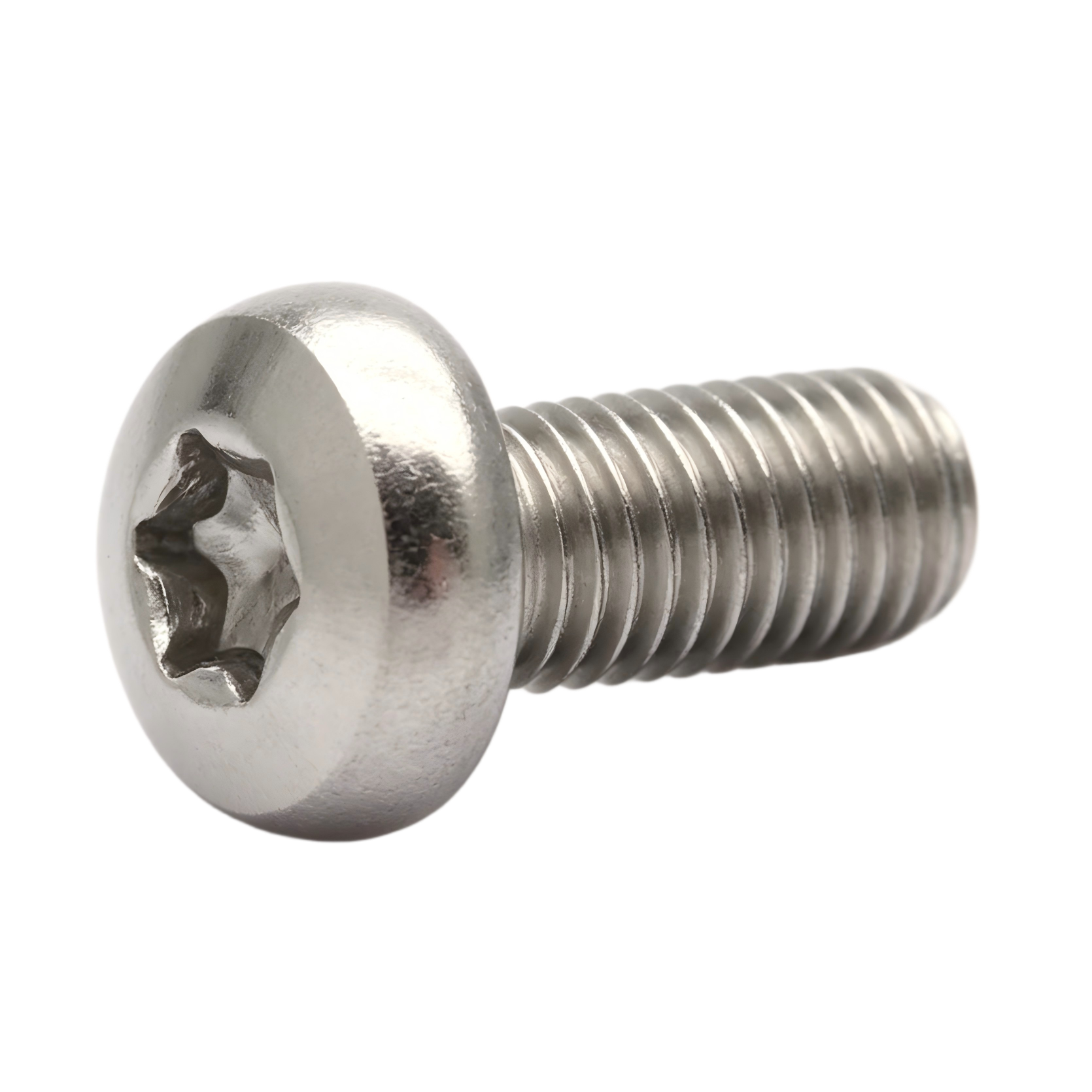

Alloy Steel Button Head Torx Screws
88 Products
Alloy Steel Button Head Torx Screws
Made from alloy steel, these screws are three times stronger than standard steel button head Torx screws. A Torx-Plus drive has more points of contact than other drives, allowing you to tighten the screw without damaging the recess.
Part Number
Thread
Size
Size
Threading
Length
Thread
Type
Type
Head
Diameter
Diameter
Tensile
Strength
Strength
Material
Specifications
Met
Met
Price
JAJBAABBC
2-56
Fully Threaded
3/16"
UNC
0.164"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
-
JAJBAABBE
2-56
Fully Threaded
1/4"
UNC
0.164"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
-
JAJBAABBG
2-56
Fully Threaded
5/16"
UNC
0.164"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
-
JAJBAABBI
2-56
Fully Threaded
3/8"
UNC
0.164"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
-
JAJBAABCA
4-40
Fully Threaded
3/16"
UNC
0.213"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 5.76
JGEFCAEFG
4-40
Fully Threaded
3/16"
UNC
0.213"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 4.97
JAJBAABCD
4-40
Fully Threaded
1/4"
UNC
0.213"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 5.86
JGEFCABAG
4-40
Fully Threaded
1/4"
UNC
0.213"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 8.32
JAJBAABCG
4-40
Fully Threaded
5/16"
UNC
0.213"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
-
JAJBAABCJ
4-40
Fully Threaded
3/8"
UNC
0.213"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
-
JGEFCABAI
4-40
Fully Threaded
3/8"
UNC
0.213"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 4.39
JAJBAAIBG
4-40
Fully Threaded
1/2"
UNC
0.213"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 6.25
JGEFCABBA
4-40
Fully Threaded
1/2"
UNC
0.213"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 4.50
JAJBAAIBH
4-40
Fully Threaded
3/4"
UNC
0.213"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 6.38
JGEFCAFDA
4-40
Fully Threaded
3/4"
UNC
0.213"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 5.06
JAJBAAIBI
6-32
Fully Threaded
1/4"
UNC
0.262"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 6.24
JGEFCABEE
6-32
Fully Threaded
1/4"
UNC
0.262"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 4.34
JAJBAAFBB
6-32
Fully Threaded
3/8"
UNC
0.262"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 5.76
JGEFCABEG
6-32
Fully Threaded
3/8"
UNC
0.262"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 4.39
JAJBAABEI
6-32
Fully Threaded
1/2"
UNC
0.262"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
-
JGEFCABEI
6-32
Fully Threaded
1/2"
UNC
0.262"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 4.60
JGEFCABFA
6-32
Fully Threaded
5/8"
UNC
0.262"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 4.88
JAJBAABFB
6-32
Fully Threaded
3/4"
UNC
0.262"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
-
JGEFCAFGD
6-32
Fully Threaded
3/4"
UNC
0.262"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 5.73
JAJBAAIBJ
6-32
Partially Threaded
1"
UNC
0.262"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 8.27
JAJBAAFBC
6-32
Fully Threaded
1 1/4"
UNC
0.262"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 6.51
JAJBAAFBD
6-32
Fully Threaded
1 1/2"
UNC
0.262"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 6.86
JAJBAAFBE
6-32
Fully Threaded
2"
UNC
0.262"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 7.60
JAJBAAICB
8-32
Fully Threaded
1/4"
UNC
0.312"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 6.38
JGEFCABJA
8-32
Fully Threaded
1/4"
UNC
0.312"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 4.76
JAJBAAICC
8-32
Fully Threaded
3/8"
UNC
0.312"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 8.28
JGEFCABJC
8-32
Fully Threaded
3/8"
UNC
0.312"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 4.80
JAJBAAFBF
8-32
Fully Threaded
1/2"
UNC
0.312"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 6.16
JGEFCABJE
8-32
Fully Threaded
1/2"
UNC
0.312"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 5.78
JAJBAAICD
8-32
Fully Threaded
5/8"
UNC
0.312"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 7.30
JAJBAAFBG
8-32
Fully Threaded
3/4"
UNC
0.312"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 6.70
JGEFCABJH
8-32
Fully Threaded
3/4"
UNC
0.312"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 6.01
JAJBAABJD
8-32
Fully Threaded
7/8"
UNC
0.312"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
-
JAJBAAFBH
8-32
Fully Threaded
1"
UNC
0.312"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 7.30
JAJBAAFBI
8-32
Fully Threaded
1 1/4"
UNC
0.312"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 7.84
JAJBAAFBJ
8-32
Fully Threaded
1 1/2"
UNC
0.312"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 8.34
JAJBAAFCB
8-32
Fully Threaded
2"
UNC
0.312"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 9.47
JAJBAAICE
10-24
Fully Threaded
1/4"
UNC
0.361"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 6.65
JGEFCACDI
10-24
Fully Threaded
1/4"
UNC
0.361"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 4.86
JAJBAAICF
10-24
Fully Threaded
3/8"
UNC
0.361"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 8.30
JAJBAAFCC
10-24
Fully Threaded
1/2"
UNC
0.361"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 6.90
JGEFCACEC
10-24
Fully Threaded
1/2"
UNC
0.361"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 5.37
JAJBAAICG
10-24
Fully Threaded
5/8"
UNC
0.361"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 8.70
JAJBAAFCD
10-24
Fully Threaded
3/4"
UNC
0.361"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 7.65
JGEFCACEF
10-24
Fully Threaded
3/4"
UNC
0.361"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 6.12
JAJBAAFCE
10-24
Fully Threaded
1"
UNC
0.361"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 8.34
JGEFCACEG
10-24
Fully Threaded
1"
UNC
0.361"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 7.20
JAJBAAFCF
10-24
Fully Threaded
1 1/4"
UNC
0.361"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 9.03
JAJBAAFCG
10-24
Fully Threaded
1 1/2"
UNC
0.361"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 9.72
JAJBAAFCH
10-24
Fully Threaded
2"
UNC
0.361"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 5.52
JAJBAAFCI
10-24
Fully Threaded
2 1/2"
UNC
0.361"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 6.22
JAJBAAICH
10-32
Fully Threaded
1/4"
UNF
0.361"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 6.65
JGEFCAHEC
10-32
Fully Threaded
1/4"
UNF
0.361"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 5.16
JAJBAAICI
10-32
Fully Threaded
3/8"
UNF
0.361"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 8.30
JGEFCADBB
10-32
Fully Threaded
3/8"
UNF
0.361"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 4.91
JAJBAAICJ
10-32
Fully Threaded
1/2"
UNF
0.361"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 8.53
JGEFCADBE
10-32
Fully Threaded
1/2"
UNF
0.361"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 5.37
JGEFCADBJ
10-32
Fully Threaded
5/8"
UNF
0.361"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 5.60
JAJBAAIDB
10-32
Fully Threaded
3/4"
UNF
0.361"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 8.90
JAJBAAIDC
10-32
Fully Threaded
1"
UNF
0.361"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 9.13
JGEFCADDB
10-32
Fully Threaded
1"
UNF
0.361"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 7.70
JAJBAAEJB
1/4"-20
Fully Threaded
1/4"
UNC
0.437"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 15.67
JAJBAAEJC
1/4"-20
Fully Threaded
3/8"
UNC
0.437"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 5.30
JGEFCAFDF
1/4"-20
Fully Threaded
3/8"
UNC
0.437"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 5.48
JAJBAAFDH
1/4"-20
Fully Threaded
1/2"
UNC
0.437"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
-
JGEFCAFDH
1/4"-20
Fully Threaded
1/2"
UNC
0.437"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 5.85
JAJBAAEJD
1/4"-20
Fully Threaded
5/8"
UNC
0.437"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 6.04
JAJBAAFCJ
1/4"-20
Fully Threaded
3/4"
UNC
0.437"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 5.48
JGEFCAFEA
1/4"-20
Fully Threaded
3/4"
UNC
0.437"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 6.55
JAJBAAFDB
1/4"-20
Fully Threaded
1"
UNC
0.437"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 6.09
JGEFCAFEC
1/4"-20
Fully Threaded
1"
UNC
0.437"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 7.32
JAJBAAFDC
1/4"-20
Fully Threaded
1 1/4"
UNC
0.437"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 6.74
JAJBAAFDD
1/4"-20
Fully Threaded
1 1/2"
UNC
0.437"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 7.35
JAJBAAEJE
1/4"-20
Fully Threaded
1 3/4"
UNC
0.437"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 9.30
JAJBAAFDE
1/4"-20
Fully Threaded
2"
UNC
0.437"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 8.59
JAJBAAFDF
1/4"-20
Fully Threaded
2 1/2"
UNC
0.437"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 9.54
JAJBAAFDG
1/4"-20
Partially Threaded
3"
UNC
0.437"
120,000 psi
Zinc-Plated Alloy Steel
ASME B18.3, ASTM F835
$ 11.10
JGEFCAFHI
5/16"-18
Fully Threaded
1/2"
UNC
0.547"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 6.71
JGEFCAFIB
5/16"-18
Fully Threaded
3/4"
UNC
0.547"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 7.58
JGEFCAFIF
5/16"-18
Fully Threaded
1"
UNC
0.547"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 4.78
JGEFCAGBJ
3/8"-16
Fully Threaded
1/2"
UNC
0.656"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 5.24
JGEFCAGCC
3/8"-16
Fully Threaded
3/4"
UNC
0.656"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 6.01
JGEFCAGCI
3/8"-16
Fully Threaded
1 1/4"
UNC
0.656"
120,000 psi
Black-Oxide Alloy Steel
ASME B18.3, ASTM F835
$ 7.42
