Minimum Length
Stroke Length
Total Length
Max Charging Pressure
Max Piston Rod Velocity
- Interchangeable With:
- KALLER

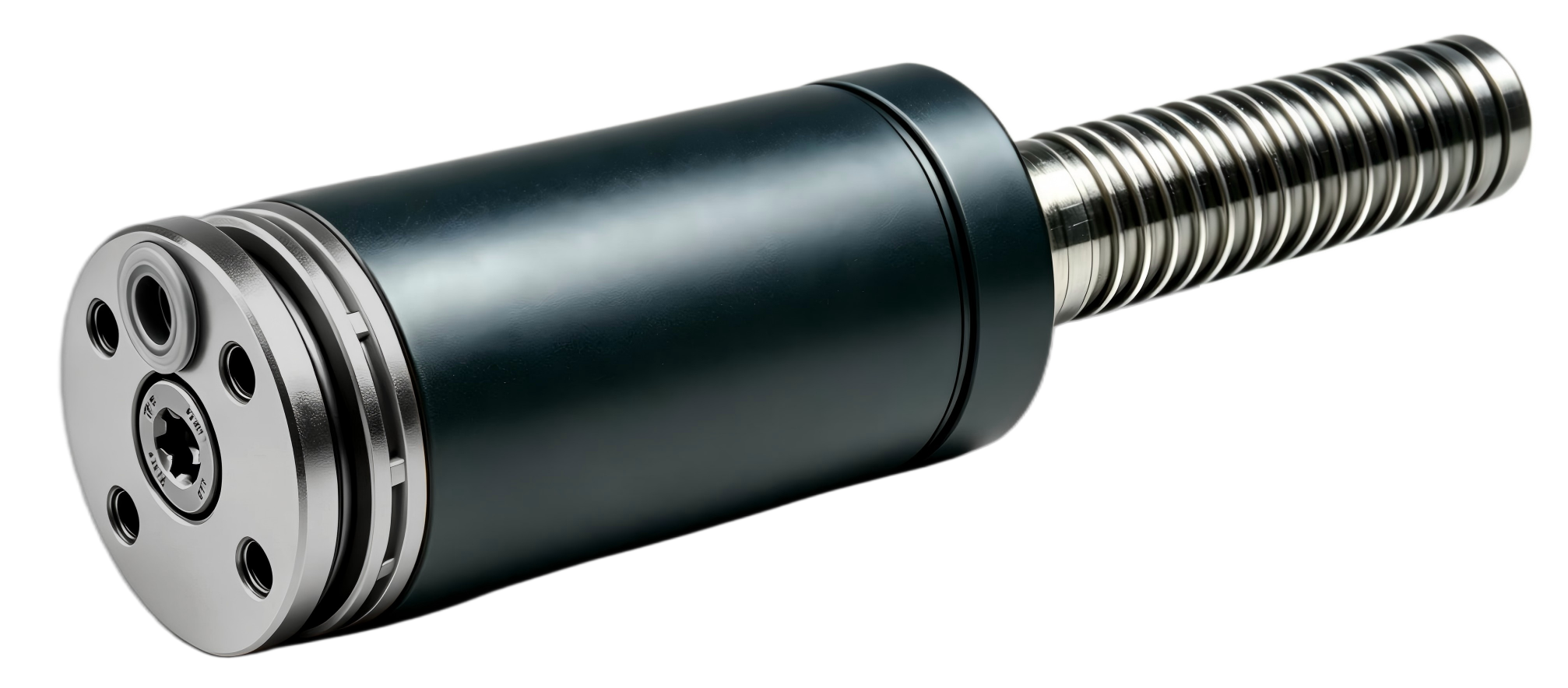

SPC
22 Products
SPC
Part Number
Minimum
Length
Length
Stroke
Length
Length
Total
Length
Length
End Force At
Stroke
Stroke
Force Increase By
Temperature Percent Per
Temperature Percent Per
Gas Volume
Initial Force at
pressure
pressure
Max Charging
Pressure
Pressure
Max Piston
Rod Velocity
Rod Velocity
Max. Operating
Temperature
Temperature
Min Charging
Pressure
Pressure
Min. Operating
Temperature
Temperature
Recommended Max Strokes
Minute
Minute
SPC 750-080
7.48"
3.15"
10.63"
2700 lbf
0.17 °F
0.0105944 cuf
1665 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 750-100
8.27"
3.94"
12.2"
2700 lbf
0.17 °F
0.01271328 cuf
1665 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 750-125
9.25"
4.92"
14.17"
2700 lbf
0.17 °F
0.015538453 cuf
1665 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 750-160
10.63"
6.3"
16.93"
2700 lbf
0.17 °F
0.019423067 cuf
1665 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 750-200
12.2"
7.87"
20.08"
2700 lbf
0.17 °F
0.023660827 cuf
1665 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 750-250
14.17"
9.84"
24.02"
2700 lbf
0.17 °F
0.029311173 cuf
1665 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 750-300
16.14"
11.81"
27.95"
2700 lbf
0.17 °F
0.034608373 cuf
1665 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 1500-125
9.65"
4.92"
14.57"
4275 lbf
0.17 °F
0.025779707 cuf
3375 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 1500-160
11.02"
6.3"
17.32"
4275 lbf
0.17 °F
0.032136347 cuf
3375 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 1500-200
12.6"
7.87"
20.47"
4275 lbf
0.17 °F
0.03919928 cuf
3375 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 1500-250
14.57"
9.84"
24.41"
4275 lbf
0.17 °F
0.048027947 cuf
3375 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 1500-300
16.54"
11.81"
28.35"
4275 lbf
0.17 °F
0.05720976 cuf
3375 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 3000-125
10.43"
4.92"
15.35"
8550 lbf
0.17 °F
0.040611867 cuf
6750 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 3000-160
11.81"
6.3"
18.11"
8550 lbf
0.17 °F
0.050499973 cuf
6750 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 3000-200
13.39"
7.87"
21.26"
8550 lbf
0.17 °F
0.06144752 cuf
6750 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 3000-250
15.35"
9.84"
25.2"
8775 lbf
0.17 °F
0.075573387 cuf
6750 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 3000-300
17.32"
11.81"
29.13"
8775 lbf
0.17 °F
0.089346107 cuf
6750 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 5000-125
11.02"
4.92"
15.94"
14400 lbf
0.17 °F
0.067097867 cuf
11240 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 5000-160
12.4"
6.3"
18.7"
14625 lbf
0.17 °F
0.082283173 cuf
11240 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 5000-200
13.98"
7.87"
21.85"
14850 lbf
0.17 °F
0.09958736 cuf
11240 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 5000-250
15.94"
9.84"
25.79"
14850 lbf
0.17 °F
0.121129307 cuf
11240 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
SPC 5000-300
17.91"
11.81"
29.72"
14850 lbf
0.17 °F
0.1430244 cuf
11240 lbf
2175 psi
314.96 ftmin
176 F
362 psi
32 F
See separate file in Documents -> Brochures
