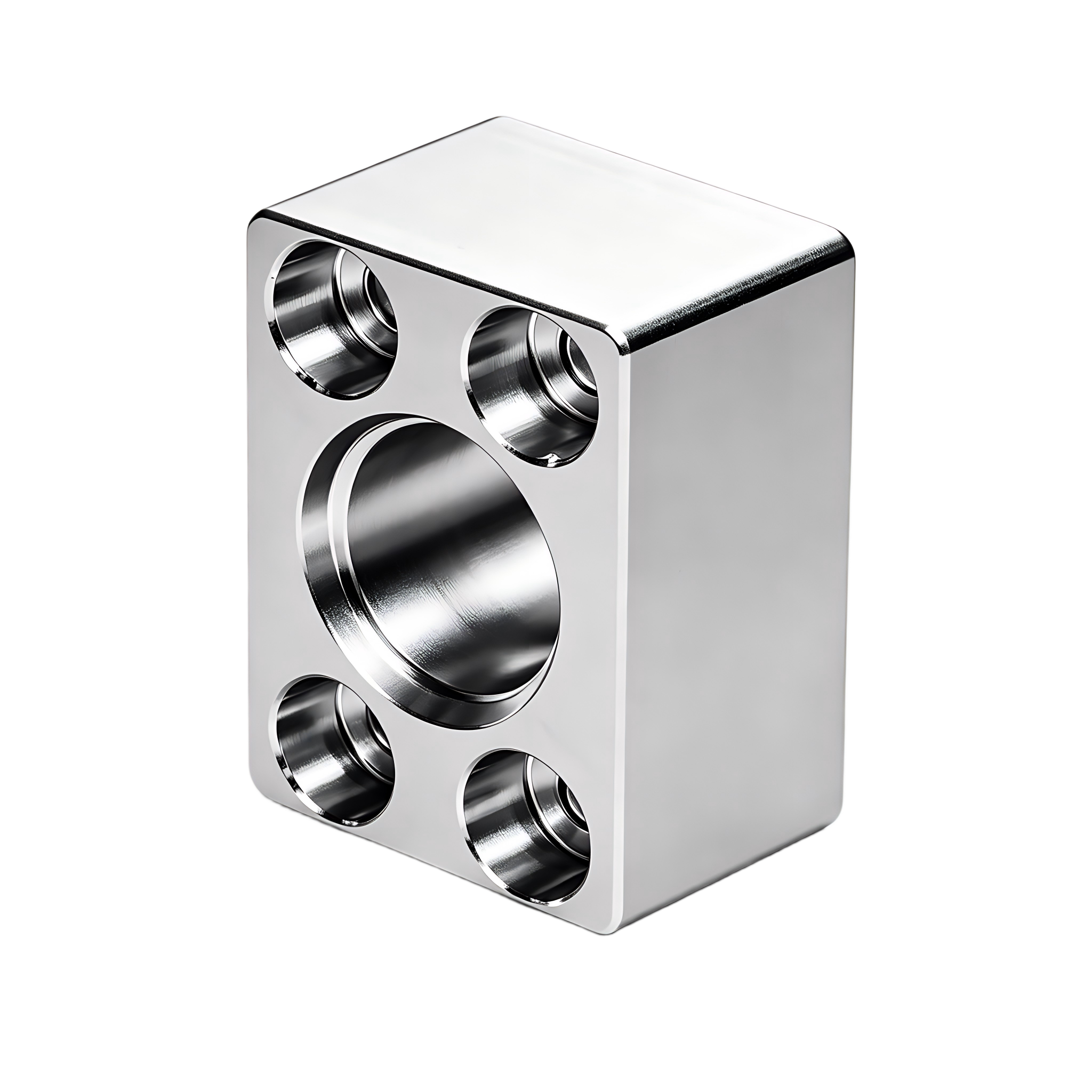

High-Pressure Steel Threaded SAE Pipe Flanges
14 Products
High-Pressure Steel Threaded SAE Pipe Flanges
Part Number
Pipe Size
Thread
Size
Size
Thread
Type
Type
Dash Size
SAE Flange
Size
Size
Flange
Height
Height
Flange
Width
Width
Flange
Depth
Depth
Flanged Connection
Surface
Surface
Mounting Hardware
Included
Included
For Bolt
Thread Type
Thread Type
For Bolt
Diameter
Diameter
Bolt Hole
Diameter
Diameter
Bolt Hole
Number of
Number of
Bolt Hole
Center -to-Center
Center -to-Center
Maximum
Pressure
Pressure
Material
Price
CBCFNB
3/4
-
NPTF
12
3/4
2 5/8"
1 3/4"
1 1/4"
Flat
No
Inch
3/8"
3/8"
4
0.875", 1.875"
3,000 psi @ 72° F
Steel
$ 23.61
CBCFNBB
1
-
NPTF
16
1
2 53/64"
2"
1 1/2"
Flat
No
Inch
3/8"
3/8"
4
1.031", 2.063"
3,000 psi @ 72° F
Steel
$ 21.18
CBCFNBC
1 1/2
-
NPTF
24
1 1/2
3 3/4"
2 3/4"
1 3/4"
Flat
No
Inch
0.438"
1/2"
4
1.406", 2.75"
3,000 psi @ 72° F
Steel
$ 37.29
CBCFNBD
2
-
NPTF
32
2
4"
3 1/4"
1 3/4"
Flat
No
Inch
1/2"
1/2"
4
1.688", 3.063"
3,000 psi @ 72° F
Steel
$ 41.08
CBCFNBE
3/4
-
NPTF
12
3/4
2 5/8"
1 3/4"
1 1/4"
O-Ring Groove
Yes
Inch
3/8"
0.41"
4
0.875", 1.875"
3,000 psi @ 72° F
Steel
$ 27.51
CBCFNBF
1
-
NPTF
16
1
2 53/64"
2"
1 1/2"
O-Ring Groove
Yes
Inch
3/8"
0.41"
4
1.031", 2.063"
3,000 psi @ 72° F
Steel
$ 30.09
CBCFNBG
1 1/2
-
NPTF
24
1 1/2
3 3/4"
2 3/4"
1 3/4"
O-Ring Groove
Yes
Inch
0.438"
0.53"
4
1.406", 2.75"
3,000 psi @ 72° F
Steel
$ 38.16
CBCFNBH
2
-
NPTF
32
2
4"
3 1/4"
1 3/4"
O-Ring Groove
Yes
Inch
1/2"
0.53"
4
1.688", 3.063"
3,000 psi @ 72° F
Steel
$ 42.78
CBCFNBJ
1
-
NPTF
16
1
72mm
51mm
38mm
O-Ring Groove
Yes
Metric
10mm
10.5mm
4
26mm, 52mm
3,000 psi @ 72° F
Steel
$ 38.06
CBCFNCB
2
-
NPTF
32
2
102mm
83mm
44mm
O-Ring Groove
Yes
Metric
12mm
13.3mm
4
43mm, 78mm
3,000 psi @ 72° F
Steel
$ 54.14
CBCFNCE
-
1 7/8"-12
UN/UNF (SAE Straight)
24
1 1/2
3 3/4"
2 3/4"
1 3/4"
Flat
No
Inch
0.438"
1/2"
4
1.406", 2.75"
3,000 psi @ 72° F
Steel
$ 37.08
CBCFNCH
-
1 5/16"-12
UN/UNF (SAE Straight)
16
1
2 53/64"
2"
1 1/2"
O-Ring Groove
Yes
Inch
3/8"
0.41"
4
1.031", 2.063"
3,000 psi @ 72° F
Steel
$ 37.15
CBCFNCJ
-
1 7/8"-12
UN/UNF (SAE Straight)
24
2
4"
3 1/4"
1 3/4"
O-Ring Groove
Yes
Inch
1/2"
0.53"
4
1.688", 3.063"
3,000 psi @ 72° F
Steel
$ 53.28
CBCFNDC
-
1 7/8"-12
UN/UNF (SAE Straight)
24
1 1/2
95mm
70mm
44mm
O-Ring Groove
Yes
Metric
12mm
13.3mm
4
36mm, 70mm
3,000 psi @ 72° F
Steel
$ 60.40
