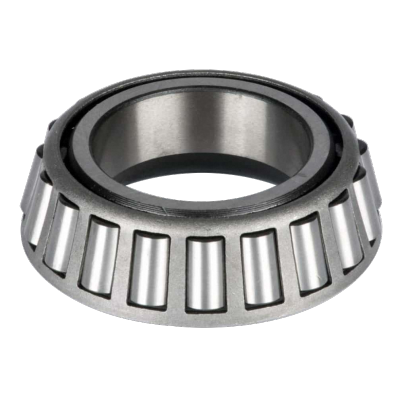

0679
Part Number | 0679 |
Brand: LILY | Interchangeable With: Timken |
System of Measurement | Inch |
Type | Cones |
Bearing Part Number | 679-672 , 679-672-B , 679-672A , 679-672P , 679-673 , 679-674 |
Bearing Type | Roller |
Roller Bearing Type | Tapered |
For Load Direction | Combined |
Construction | Single Row |
Seal Type | Open |
Series | 675 |
Bore Dia | 3.5" |
Bore Dia Tolerance | +0.001" to 0 |
Cone Width | 1.625" |
Cone Width Tolerance | +0.003" to -0.01 |
Cone Backface ToClear Radius | 0.14" |
Cone Frontface Backing Diameter | 3.98" |
Cone Backface Backing Diameter | 4.21" |
Cage Cone Frontface Clearance | 0.12" |
Cage Cone Backface Clearance | 0.17" |
Effective Center Location | -0.11" |
Ring Material | Chrome Steel |
Cage Material | Steel |
Dynamic Radial Load | 59500 lbf |
Static Radial Load | 86700 lbf |
Dynamic Radial Rating(90 Million Revolutions)(C90) | 15400 lbf |
Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) | 104000 lbf |
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) | 12400 lbf |
Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) | 26900 lbf |
Temperature Range | -30° to 110 °C |
ABEC Rating | ABEC-1 |
Radial Clearance | Standard (Available in C3/C4/C5) |
RoHS | Compliant |
REACH | Compliant |
