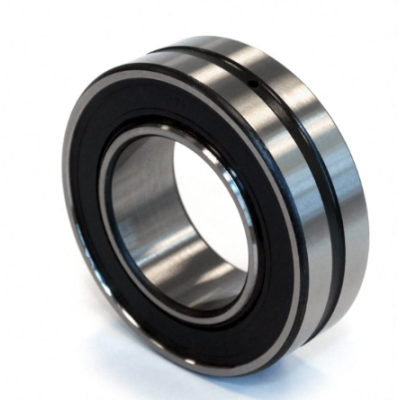

241/710-2CS5K30/C3HGEA8
| Part Number | 241/710-2CS5K30/C3HGEA8 |
Brand: LILY  |
Interchangeable With: SKF |
| System of Measurement | Metric |
| Radial run-out | Standard |
| Bearing Type | Roller |
| Roller Bearing Type | Spherical |
| Bore Type | Taper 1:30 |
| For Load Direction | Combined |
| Construction | Double Row |
| Seal Type | Double Seal |
| Bore Dia | 710 mm |
| Bore Dia Tolerance | +0.75mm to 0 |
| Outer Dia | 1150 mm |
| Outer Dia Tolerance | -0.125mm to 0 |
| Width | 438 mm |
| Width Tolerance | -0.75mm to 0 |
| Shoulder Dia Of Inner Ring | 793 mm |
| Shoulder/Recess Dia Of Outer Ring | 1023 mm |
| Width Of Lubrication Groove | 22.3 mm |
| Diameter Of Lubrication Hole | 12 mm |
| Chamfer Dimension | min.9.5 mm |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 4039592 lbf |
| Static Radial Load | 7306291 lbf |
| Max Speed (X1000 rpm) | 0.03 |
| Lubrication | Required |
| Temperature Range | -30° to 200 °C |
| Radial Clearance | C3 |
| RoHs | Compliant |
| REACH | Compliant |
| Weight | 1750 kg |
