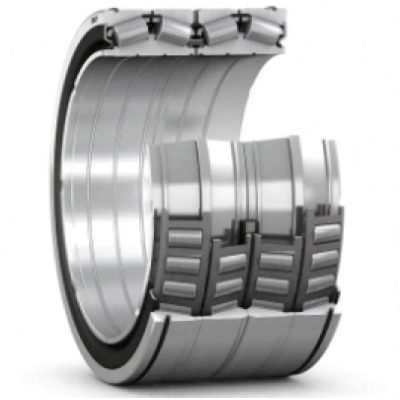

331148 A
| Part Number | 331148 A |
| System of Measurement | Metric |
| Type | Bearing |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered |
| For Load Direction | Combined |
| Construction | Four-Row |
| Seal Type | Open |
| Bore Dia | 584.2 mm |
| Bore Dia Tolerance | -0.05mm to 0 |
| Outer Dia | 762 mm |
| Outer Dia Tolerance | -0.075mm to 0 |
| Total Bearing Width Over Inner Rings | 396.875 mm |
| Total Bearing Width Over Inner Rings Tolerance | -0.25mm to 0 |
| Total Bearing Width Over Outer Rings | 401.638 mm |
| Total Bearing Width Over Outer Rings Tolerance | +0.4mm to -0.4mm |
| Abutment Diameter Shaft | 620 mm |
| Abutment Diameter Housing | 620 mm |
| Chamfer Dimension Inner Ring | min.3.3 mm |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 1721250 lbf |
| Static Radial Load | 5040000 lbf |
| Fatigue Load Limit | 351000 lbf |
| Comparative Radial Load Rating | 459000 lbf |
| Comparative Axial Load Rating | 106200 lbf |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1069.24 lb |
