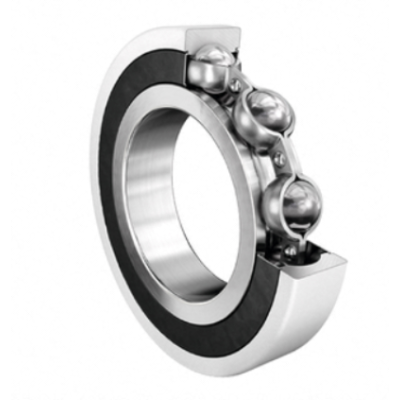

6220-2RSR-J20AA-C3
| Part Number | 6220-2RSR-J20AA-C3 |
Brand: LILY  |
Interchangeable With: FAG |
| System of Measurement | Metric |
| Ball Type | Ball |
| For Load Direction | Radial |
| Coating | J20AA |
| Construction | Single Row |
| Seal Type | Sealed |
| Bore Dia | 100 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 180 mm |
| Outer Dia Tolerance | -0.025mm to 0 |
| Width | 34 mm |
| Width Tolerance | -0.2mm to 0 |
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Radial Load(Cr) | 29226.619 lbf |
| Static Radial Load(C0r) | 20908.273 lbf |
| Max Speed (X1000 rpm) | 2.14 |
| Lubrication | Grease(GA13) |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 °C to 150 °C |
| Tolerance Class | PN |
| Dimensional/Heat Stabilization | S0(150 °C) |
| Radial Clearance Trade No | C3 |
| Radial Clearance | 0.03mm to 0.058mm |
| RoHS | Compliant |
| Weight | 3.14 kg |
