| Part Number |

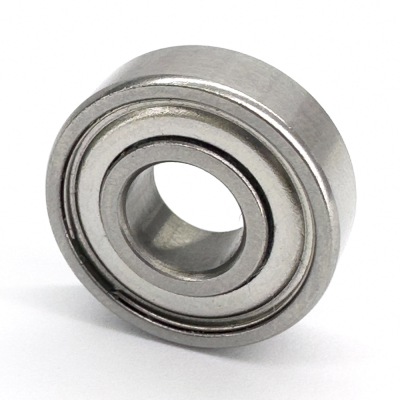

628HZZ |
Brand: LILY  |
Interchangeable With: EZO |
| System of Measurement |
Metric |
| Seal Type |
Shielded |
| Bore Dia |
8 mm |
| Outer Dia |
24 mm |
| Width |
8 mm |
| Ring Material |
440C Stainless Steel |
| Ball Material |
440C Stainless Steel |
| Cage Material |
304 Stainless Steel |
| Dynamic Radial Load |
637 lbf |
| Static Radial Load |
254 lbf |
| Max Speed (X1000 rpm) |
31 |
| Inner Ring Chamfer Dimension |
0.3 mm |
| Outer Ring Chamfer Dimension |
0.3 mm |
| Lubrication |
Required |
| Shaft Mount Type |
Press Fit |
| Temperature Range |
-30° to 110 °C |
| Radial Clearance |
0.002mm to 0.013mm |
| RoHS |
Compliant |
| REACH |
Compliant |
| Ball Dia |
3.969 mm |
| Ball Qty |
7 |
| Weight |
17 g |
