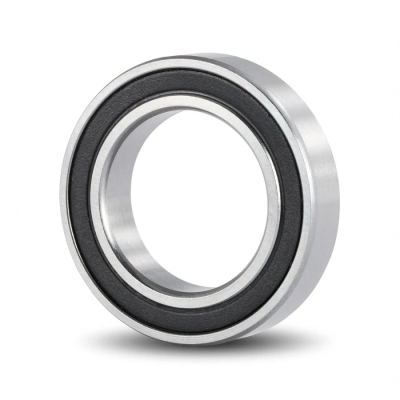

63804 2RU
| Part Number | 63804 2RU |
Brand: LILY  |
Interchangeable With: EZO |
| System of Measurement | Metric |
| Seal Type | Sealed |
| Bore Dia | 20 mm |
| Outer Dia | 32 mm |
| Width | 10 mm |
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Radial Load | 904 lbf |
| Static Radial Load | 554 lbf |
| Max Speed (X1000 rpm) | 21 |
| Inner Ring Chamfer Dimension | 0.3 mm |
| Outer Ring Chamfer Dimension | 0.3 mm |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| Radial Clearance | 0.003mm to 0.018mm |
| RoHS | Compliant |
| REACH | Compliant |
| Ball Dia | 3.5 mm |
| Ball Qty | 13 |
| Weight | 24 g |
