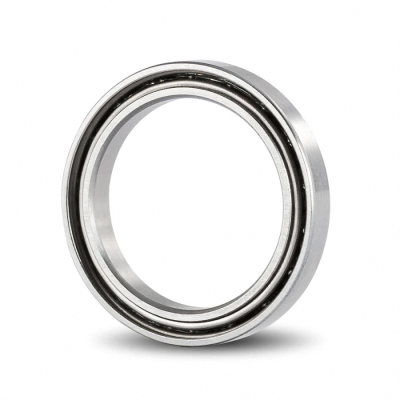

6707H
| Part Number | 6707H |
Brand: LILY  |
Interchangeable With: EZO |
| System of Measurement | Metric |
| Seal Type | Open |
| Bore Dia | 35 mm |
| Outer Dia | 44 mm |
| Width | 5 mm |
| Ring Material | 440C Stainless Steel |
| Ball Material | 440C Stainless Steel |
| Cage Material | 304 Stainless Steel |
| Dynamic Radial Load | 358 lbf |
| Static Radial Load | 295 lbf |
| Max Speed (X1000 rpm) | 4.9 |
| Inner Ring Chamfer Dimension | 0.3 mm |
| Outer Ring Chamfer Dimension | 0.3 mm |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| Radial Clearance | 0.003mm to 0.018mm |
| RoHS | Compliant |
| REACH | Compliant |
| Ball Dia | 2.0 mm |
| Ball Qty | 26 |
| Weight | 13.5 g |
