6904LLBNR

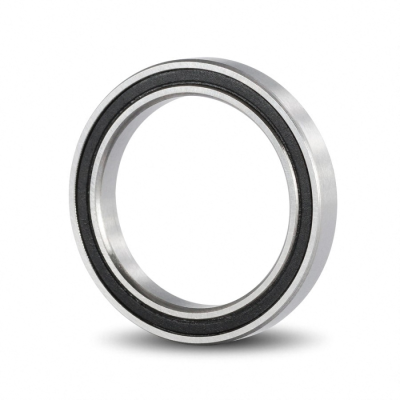

![6904LLBNR Single Row Radial Ball Bearings](https://imgl.lily-bearing.com/ntn-deep-groove-ball-bearings/single-row-radial-ball-bearings/6904.jpg?x-oss-process=image/resize,w_150,h_150,m_pad/auto-orient,1/quality,q_90/format,png)
Price $ 18.18
Number
Part Number | 6904LLBNR |
Brand: LILY ![]() |
Interchangeable With: NTN |
System of Measurement | Metric |
Bearing Type | Ball |
For Load Direction | Radial |
Construction | Single Row |
Seal Type | Sealed |
Bore Dia | 20 mm |
Bore Dia Tolerance | -0.01mm to 0 |
Outer Dia | 37 mm |
Outer Dia Tolerance | -0.011mm to 0 |
Width | 9 mm |
Width Tolerance | -0.120mm to 0 |
Ring Material | Chrome Steel |
Ball Material | Chrome Steel |
Cage Material | Chrome Steel |
Locating Feature Bearing Outer Ring | Snap Ring (fitted) |
Dynamic Radial Load | 1434 lbf |
Static Radial Load | 827 lbf |
Max Speed (X1000 rpm) | 22 |
Lubrication | None |
Temperature Range | -30°to 120 °C |
ABEC Rating | ABEC 1 | ISO P0 |
Radial Internal Clearance | CN |
ROHS | Compliant |
REACH | Compliant |
Weight | 40 g |
