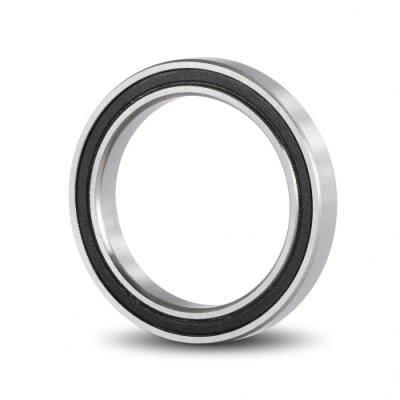

6913ZZNR
Price $ 61.14
Number
| Part Number | 6913ZZNR |
Brand: LILY  |
Interchangeable With: NTN |
| System of Measurement | Metric |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Shielded |
| Bore Dia | 65 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia | 90 mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width | 13 mm |
| Width Tolerance | -0.150mm to 0 |
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Chrome Steel |
| Locating Feature Bearing Outer Ring | Snap Ring (fitted) |
| Dynamic Radial Load | 3889 lbf |
| Static Radial Load | 3597 lbf |
| Max Speed (X1000 rpm) | 8.3 |
| Lubrication | None |
| Temperature Range | -30°to 120 °C |
| ABEC Rating | ABEC 1 | ISO P0 |
| Radial Internal Clearance | CN |
| ROHS | Compliant |
| REACH | Compliant |
| Weight | 211 g |
