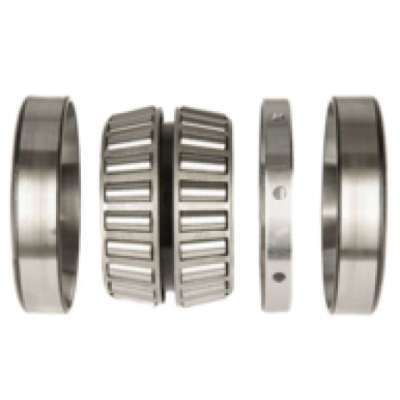

74510D-74856
Part Number | 74510D-74856 |
System of Measurement | Inch |
Type | Bearing |
Cone Part Number | 74510D |
Cup Part Number | 74856 |
Bearing Type | Roller |
Roller Bearing Type | Tapered |
For Load Direction | Combined |
Construction | Double Row |
Seal Type | Open |
Cups Type | Standard |
Series | 74000 |
Bore Dia | 5.1183" |
Bore Dia Tolerance | +0.001" to 0 |
Outer Dia | 8.5625" |
Outer Dia Tolerance | +0.001" to 0 |
Double Cone Width | 4.875" |
Double Cone Width Tolerance | +0.003" to -0.01 |
Cup Width | 1.375" |
Cup Width Tolerance | +0.002" to -0.01 |
Bearing Width Across Cups | 4.875" |
Bearing Width Across Cups Tolerance | +0.014" to -0.01" |
Cone Backface ToClear Radius | 0.06" |
Cup Backface ToClear Radius | 0.13" |
Cup Frontface Backing Diameter | 5.75" |
Cup Backface Backing Diameter | 7.76" |
Dynamic Radial Load | 150000 lbf |
Ring Material | Chrome Steel |
Roller Material | Chrome Steel |
Cage Material | Steel |
Dynamic Radial Rating(One Row 90 Million Revolutions) | 22300 lbf |
Dynamic Thrust Rating(90 Million Revolutions) | 18600 lbf |
Dynamic Radial Rating(Two Row 90 Million Revolutions) | 38800 lbf |
Lubrication | Required |
Temperature Range | -30° to 110 °C |
ABEC Rating | ABEC-1 |
Radial Clearance | Standard (Available in C3/C4/C5) |
RoHS | Compliant |
REACH | Compliant |
Weight | 36.40 lb |
