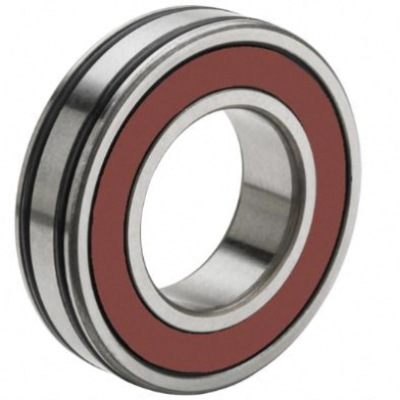

AC-6306LLB
| Part Number | AC-6306LLB |
Brand: LILY  |
Interchangeable With: NTN |
| System of Measurement | Metric |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Sealed |
| Bore Dia | 30 mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| Outer Dia | 72 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width | 19 mm |
| Width Tolerance | -0.12mm to 0 |
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | 300 Series Stainless Steel |
| Locating Feature Bearing Ring | AC Ring |
| Dynamic Radial Load | 6630 lbf |
| Static Radial Load | 15000 lbf |
| Max Speed (X1000 rpm) | 10 |
| Lubrication | Grease |
| Temperature Range | -30°to 120 °C |
| ABEC Rating | ABEC 1 | ISO P0 |
| Radial Clearance Trade No | CN |
| ROHS | Compliant |
| REACH | Compliant |
| Weight | 0.736 lb |
