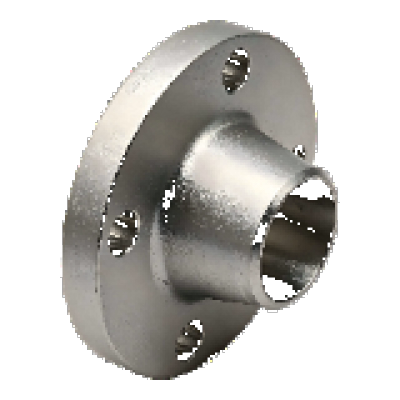

BBDJTGJ
Price $ 186.17
Part Number | BBDJTGJ |
System of Measurement | Inch |
Shape | Straight |
Type | Flange, Adapter |
Pressure Class | 1500 |
Fabrication | Forged |
Connection Type | Pipe |
Connection Style | Butt Weld × Flanged |
Pipe Size | 3 |
Dash Size | 48 |
Wall Thickness | 0.216" |
Construction | Seamless |
Flanged Connection Surface | Raised |
Flange OD | 10 1/2" |
For Bolt Diameter | 1 1/4" |
Bolt Hole Diameter | 1 1/4" |
Bolt Hole Number of | 8 |
Bolt Circle Diameter | 8" |
Maximum Pressure | 3,700 psi @ 72° F |
Maximum Steam Pressure | 3,200 psi @ 300° F |
Material | Steel |
For Fitting Class | 6000 |
For Fitting Material | Steel |
For Pipe Schedule | 40 |
For Pipe Material | Steel |
Certification | Material Certificate with Traceable Lot Number and Test Report |
Specifications Met | ASME B16.5, ASTM A105, MSS SP-25, MSS SP-6 |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
For Use With | Air, Hydraulic Fluid, Natural Gas, Oil, Steam, Water |
INTERCHANGE
The LILY Bearing part series BBDJTGJ is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
BBDJTGJ
