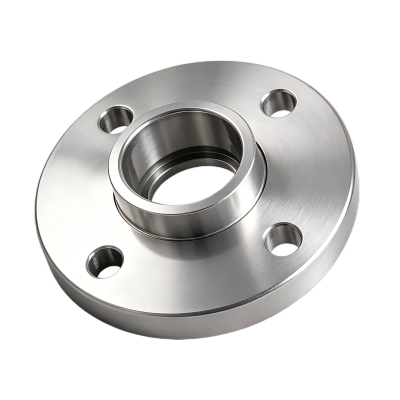

BBFDTEF
Price $ 129.00
| Part Number | BBFDTEF |
| System of Measurement | Inch |
| Shape | Straight |
| Type | Flange, Adapter |
| Pressure Class | 1500 |
| Fabrication | Forged |
| Connection Type | Pipe |
| Connection Style | Threaded × Flanged |
| Flanged Connection Surface | Raised |
| Thread Type | NPT |
| Gender | Female |
| Pipe Size | 1 1/2 |
| Dash Size | 24 |
| Flange OD | 7" |
| For Bolt Diameter | 1" |
| Bolt Hole Diameter | 1 1/8" |
| Bolt Hole Number of | 4 |
| Bolt Circle Diameter | 4 7/8" |
| Maximum Pressure | 3,700 psi @ 72° F |
| Maximum Steam Pressure | 3,200 psi @ 300° F |
| Material | Steel |
| For Fitting Class | 3000, 6000 |
| For Fitting Material | Iron, Steel |
| For Pipe Schedule | 160, XXH |
| For Pipe Material | Steel |
| Specifications Met | ASME B16.5, ASTM A105, MSS SP-25, MSS SP-6 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
| For Use With | Air, Hydraulic Fluid, Natural Gas, Oil, Steam, Water |
INTERCHANGE
The LILY Bearing part series BBFDTEF is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
BBFDTEF
