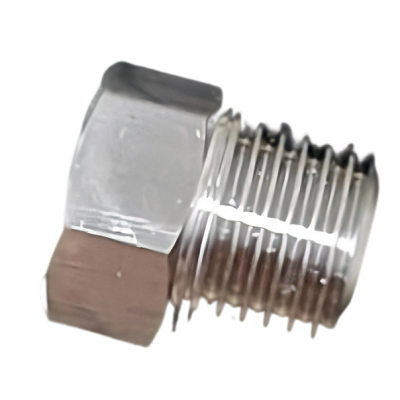

BBGCTFD
Price $ 1.26
| Part Number | BBGCTFD |
| System of Measurement | Inch |
| Shape | Straight |
| Type | Reducing Adapter, Bushing |
| Body Shape | Hex |
| Pressure Class | 150 |
| Connection Type | Pipe |
| Connection Style | Threaded |
| Connection | NPTF Male × NPTF Female |
| Pipe Size (A) | 1/2 |
| Pipe Size (B) | 1/4 |
| Hex Width | 7/8" |
| Length | 7/8" |
| Maximum Pressure | 150 psi @ 72° F |
| Maximum Steam Pressure | 150 psi @ 360° F |
| Material | Galvanized Steel |
| For Pipe Schedule | 40 |
| For Pipe Material | Galvanized Steel |
| For Flange Class | 150 |
| For Flange Material | Galvanized Steel |
| Specifications Met | ASME B16.14 |
| Features | Acrylic Thread Sealant |
| RoHS | RoHS 3 (2015/863/EU) compliant with exemption 6(a)-I - Lead as an alloying element in steel |
| REACH | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
| For Use With | Air, Natural Gas, Oil, Steam, Water |
