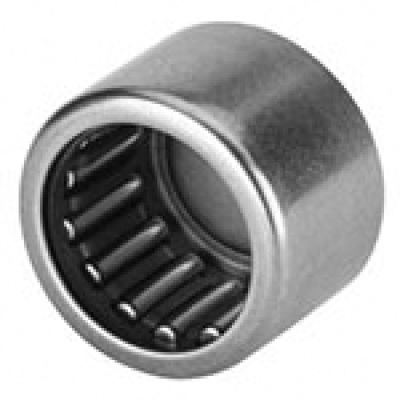

BCE2416
Part Number | BCE2416 |
Brand: LILY | Interchangeable With: Schaeffler (INA) |
System of Measurement | Inch |
Bearing Type | Roller |
Roller Bearing Type | Needle |
For Load Direction | Radial |
Construction | Single Row |
Seal Type | Open |
Series | Closed End |
Bore Dia | 1.5" |
Bore Dia Tolerance | Refer to note on the right drawing |
Outer Dia | 1.875" |
Outer Dia Tolerance | Not Rated |
Width | 1" |
Width Tolerance | -0.01" to 0" |
Ring Material | Steel |
Ball Material | Steel |
Cage Material | Steel |
Dynamic Radial Load | 8655 lbf |
Static Radial Load | 14837 lbf |
Max Speed (X1000 rpm) | 6.7 |
Lubrication | Required |
Shaft Mount Type | Press Fit |
Temperature Range | -20 to 110 °C |
RoHS | Compliant |
Weight | 83 g |
