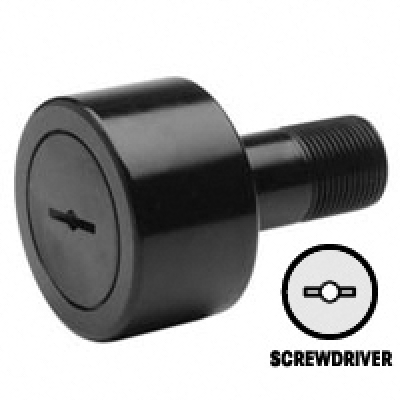

BCR-7/8
Part Number | BCR-7/8 |
Brand: LILY | Interchangeable With: SMITH |
System of Measurement | Inch |
For Load Direction | Radial |
Roller Shape | Cylindrical |
Internal Construction | Bushing |
Type | Standard Stud |
Mounting Method | Screwdriver Slot |
Seal Type | Unsealed |
Series | Stud Type Industrial Cam Followers |
Roller Material | Bearing Steel |
Roller Dia | 0.8750" |
Roller Width | 0.5000" |
Stud Dia | 0.3750" |
Stud Length | 0.8750" |
Threads | 3/8-24 |
Minimum Thread Length | 3/8 |
Shoulder Dia | 1/2 |
Lube Fitting Size | 3/16 |
Lubrication Fitting Size | 3/32 |
Lubrication Hole Location | 1/4 |
Dynamic Radial Load | 2140 lbs |
RoHS | Compliant |
REACH | Compliant |
(M) Stud Length Tolerance | +.005/-.0005 |
Recom Bore | .375 |
Recom Bore Tolerance | +.0005/-.0005 |
