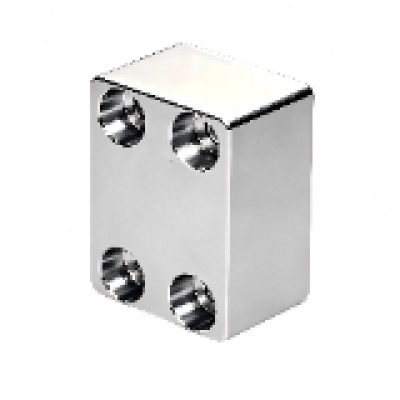

BEDBNADC
Price $ 161.04
| Part Number | BEDBNADC |
| System of Measurement | Inch |
| Shape | Cap/Plug |
| Type | Flange, Cap |
| Material | 316/316L Stainless Steel |
| Flange Code | 61 |
| Fabrication | Machined |
| Connection Type | Pipe |
| Connection Style | Flanged |
| SAE Flange Size | 2 |
| Dash Size | 32 |
| O-Ring Material | Fluoroelastomer Rubber |
| Flanged Connection Surface | O-Ring Groove |
| Maximum Pressure | 3,000 psi @ 72° F |
| Flange Height | 4" |
| Flange Width | 3 1/4" |
| Flange Depth | 1 45/64" |
| Mounting Hardware Included | Yes |
| For Bolt Thread Type | Inch |
| For Bolt Diameter | 1/2" |
| Bolt Hole Diameter | 0.531" |
| Bolt Hole Number of | 4 |
| Bolt Hole Center -to-Center | 1.688", 3.063" |
| Specifications Met | ISO 6162, SAE J518 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
| For Use With | Hydraulic Fluid |
INTERCHANGE
The LILY Bearing part series BEDBNADC is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
BEDBNADC
