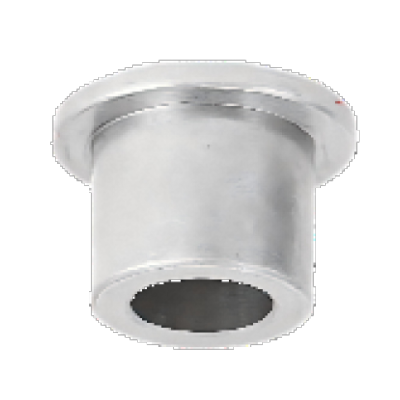

BHFCNBF
Price $ 50.95
| Part Number | BHFCNBF |
| System of Measurement | Inch |
| Shape | Straight |
| Type | Flange, Adapter |
| Connection Type | Pipe |
| Connection Style | Slip-On Weld × Flanged |
| Flanged Connection Surface | Raised |
| Gender | Female |
| Pipe Size | 1 1/2 |
| Flange OD | 5 33/64" |
| For Bolt Diameter | 5/8" |
| Bolt Hole Diameter | 0.748" |
| Bolt Hole Number of | 4 |
| Bolt Circle Diameter | 4 9/64" |
| Maximum Pressure | Not Rated |
| Maximum Steam Pressure | Not Rated |
| Material | Steel |
| For Fitting Schedule | 40 |
| For Fitting Material | Iron, Steel |
| For Pipe Schedule | 40 |
| For Pipe Material | Steel |
| Specifications Met | ASTM A105, JIS B 2220 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
| For Use With | Air, Natural Gas, Oil, Steam, Water |
INTERCHANGE
The LILY Bearing part series BHFCNBF is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
BHFCNBF
