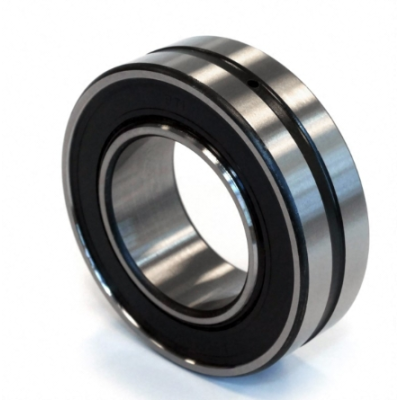

BS2-2210-2RSK/VT1898
Price $ 59.84
Number
Part Number | BS2-2210-2RSK/VT1898 |
Brand: LILY | Interchangeable With: SKF |
System of Measurement | Metric |
Bearing Type | Roller |
Roller Bearing Type | Spherical |
Bore Type | Taper 1:12 |
For Load Direction | Combined |
Construction | Double Row |
Seal Type | Double Seal |
Bore Dia | 50 mm |
Bore Dia Tolerance | +0.025mm to 0 |
Outer Dia | 90 mm |
Outer Dia Tolerance | -0.015mm to 0 |
Width | 28 mm |
Width Tolerance | -0.06mm to 0 |
Shoulder Dia Of Inner Ring | 58.1 mm |
Shoulder/Recess Dia Of Outer Ring | 82.3 mm |
Width Of Lubrication Groove | 6 mm |
Diameter Of Lubrication Hole | 3 mm |
Chamfer Dimension | min.1.1 mm |
Ring Material | Chrome Steel |
Roller Material | Chrome Steel |
Cage Material | Steel |
Dynamic Radial Load | 24055 lbf |
Static Radial Load | 24279 lbf |
Max Speed (X1000 rpm) | 3.2 |
Lubrication | Required |
Temperature Range | -30° to 200 °C |
Radial Clearance | Standard |
Radial run-out | Standard |
RoHs | Compliant |
REACH | Compliant |
Weight | 0.7 kg |
