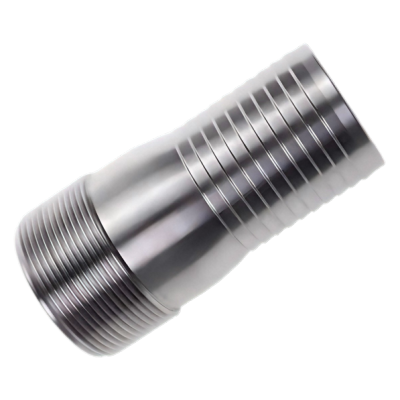

CBGBKCB
Price $ 69.90
| Part Number | CBGBKCB |
| System of Measurement | Inch |
| Shape | Straight |
| Type | Pipe, Reducer |
| Material | 304/304L Stainless Steel |
| Schedule | 80 |
| Threading | Threaded on Both Ends |
| Connection Type | Pipe |
| Connection Style | Threaded |
| Gender | Male |
| Pipe Size (A) | 1 1/2 |
| Pipe Size (B) | 1 |
| Dash Size (A) | 24 |
| Dash Size (B) | 16 |
| OD (A) | 1 29/32" |
| OD (B) | 1 5/16" |
| ID (A) | 1.5" |
| ID (B) | 0.957" |
| Wall Thickness (A) | 0.2" |
| Wall Thickness (B) | 0.179" |
| Length | 4 1/2" |
| Thread Type | NPT |
| Construction | Seamless |
| Specifications Met | ASTM A403, MSS SP-95 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
| For Use With | Air, Hydraulic Fluid, Natural Gas, Oil, Steam, Water |
INTERCHANGE
The LILY Bearing part series CBGBKCB is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CBGBKCB
