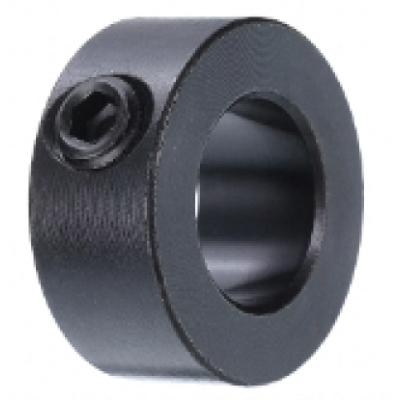

CBJINBAB
Price $ 7.72
| Part Number | CBJINBAB |
| System of Measurement | Metric |
| Component | Collar |
| For Shaft Type | Acme Lead Screw |
| Shaft Mount Type | Clamp On |
| Construction | One Piece |
| Thread Type | Metric Trapezoidal |
| Thread Direction | Right Hand |
| Thread Size | M8 |
| Thread Pitch | 1.5 mm |
| OD | 18 mm |
| Width | 9 mm |
| Number of Thread Starts | 1 |
| Material | Black-Oxide 1215 Carbon Steel |
| Hardness | Brinell 167 |
| Clamping Screws Type | Socket Head Screw |
| Clamping Screws Material | Black-Oxide Steel |
| Clamping Screws Thread Size | M3 |
| Clamping Screws Thread Pitch | 0.5 mm |
| Clamping Screws Length | 8 mm |
| Clamping Screws Number Included | 1 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
| Country of Origin | China |
INTERCHANGE
The LILY Bearing part series CBJINBAB is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CBJINBAB
