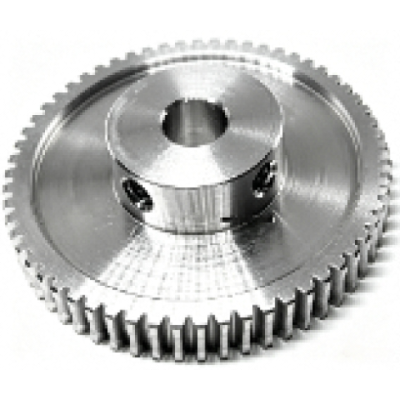

CGGCNDH
Price $ 4.60
| Part Number | CGGCNDH |
| System of Measurement | Metric |
| Gear Type | Spur |
| Pressure Angle | 20° |
| Component | Gear |
| Bore Type | Round |
| Module | 0.8 |
| Number Of Teeth | 80 |
| Gear Pitch Diameter | 64 mm |
| OD | 65.6 mm |
| Face Width | 4 mm |
| Overall Width | 10 mm |
| For Shaft Diameter | 6 mm |
| Material | Acetal Plastic |
| Fabrication | Molded |
| Color | White |
| Hub Diameter | 15.5 mm |
| Hub Width | 6 mm |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
INTERCHANGE
The LILY Bearing part series CGGCNDH is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CGGCNDH
