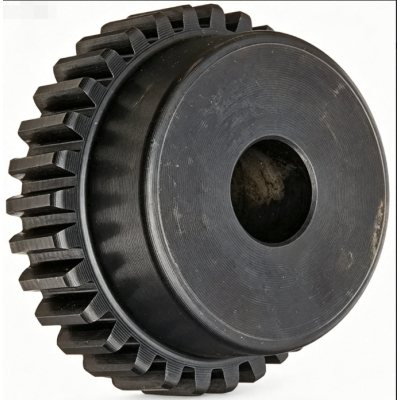

CGGCNDJF
Price $ 18.27
Part Number | CGGCNDJF |
System of Measurement | Metric |
Gear Type | Spur |
Pressure Angle | 20° |
Component | Gear |
Bore Type | Round |
Module | 1.5 |
Number Of Teeth | 30 |
Gear Pitch Diameter | 45 mm |
OD | 48 mm |
Face Width | 15 mm |
Overall Width | 25 mm |
For Shaft Diameter | 8 mm |
Material | Nylon Plastic |
Fabrication | Machined |
Color | Blue |
Hub Diameter | 38 mm |
Hub Width | 10 mm |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (07/08/2021, 219 SVHC) Compliant |
INTERCHANGE
The LILY Bearing part series CGGCNDJF is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CGGCNDJF
