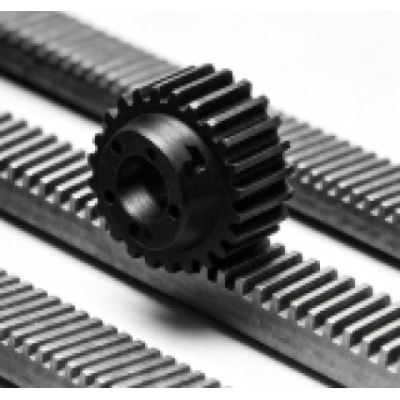

CGGCNEFF
| Part Number | CGGCNEFF |
| System of Measurement | Metric |
| Gear Type | Spur |
| Component | Gear |
| Bore Type | Round |
| Module | 2 |
| Pressure Angle | 20° |
| Number Of Teeth | 26 |
| Gear Pitch Diameter | 52 mm |
| OD | 56 mm |
| Face Width | 20 mm |
| Overall Width | 30 mm |
| For Shaft Diameter | 10 mm |
| Material | Plastic |
| Fabrication | Machined |
| Color | Blue |
| Hub Diameter | 42 mm |
| Hub Width | 10 mm |
| Heat Treatment | Tooth Surface Induction Hardening |
| Gear Hardness | 45-55HRC |
| Gear Accuracy | ANSI-2 AGMA-11 |
| RoHs | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant |
| Application Field | Mechanical transmission in chemical, textile machinery, food processing, instrumentation, petroleum and other industries, etc. |
INTERCHANGE
The LILY Bearing part series CGGCNEFF is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CGGCNEFF
