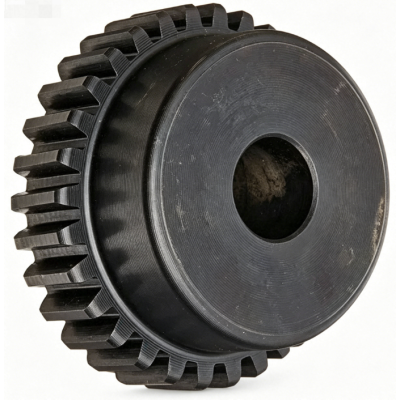

CGGENDIC
Price $ 16.64
| Part Number | CGGENDIC |
| System of Measurement | Metric |
| Gear Type | Spur |
| Pressure Angle | 20° |
| Component | Gear |
| Bore Type | Round |
| Module | 1.5 |
| Number Of Teeth | 30 |
| Gear Pitch Diameter | 45 mm |
| OD | 48 mm |
| Face Width | 15 mm |
| Overall Width | 25 mm |
| For Shaft Diameter | 10 mm |
| Material | Black-Oxide 1045 Carbon Steel |
| Teeth Heat Treatment | Not Hardened |
| Hub Diameter | 38 mm |
| Hub Width | 10 mm |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (07/08/2021, 219 SVHC) Compliant |
INTERCHANGE
The LILY Bearing part series CGGENDIC is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CGGENDIC
