CHAGTFCD

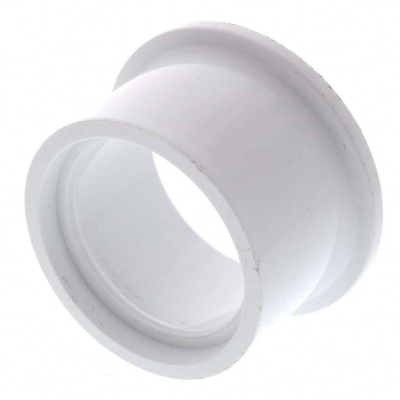

![CHAGTFCD Ultra-Low-Friction Dry-Running Flanged Sleeve Bearings](https://imgl.lily-bearing.com/plain-bearings/sleeve-bearings/ultra-low-friction-dry-running-flanged/1710307095469.jpg?x-oss-process=image/resize,w_150,h_150,m_pad/auto-orient,1/quality,q_90/format,png)
Part Number | CHAGTFCD |
System of Measurement | Metric |
Bearing Type | Plain |
Plain Bearing Type | Flanged |
For Load Direction | Combined Radial and Thrust |
For Shaft Diameter | 8 mm |
Bore Dia | 8 mm |
Bore Dia Tolerance | 0 mm to 0.21 mm |
For Housing ID | 12 mm |
Outer Dia | 12 mm |
Outer Dia Tolerance | 0 to 0.11 mm |
Length | 16 mm |
Length Tolerance | -0.13mm to 0.13mm |
Flange OD | 16 mm |
Flange Thickness | 2mm |
Dynamic Radial Load | 20 lbf |
Static Radial Load | 20 lbf |
Dynamic Thrust Load | 11 lbf |
Max Speed (X1000 rpm) | 0.12 |
Material | PTFE Plastic |
Lubrication | Not Required |
For Shaft Type | Round |
Shaft Mount Type | Slip Fit |
Temperature Range | -200° to 450° F |
RoHS | Compliant |
REACH | Compliant |
INTERCHANGE
The LILY Bearing part series CHAGTFCD is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CHAGTFCD
