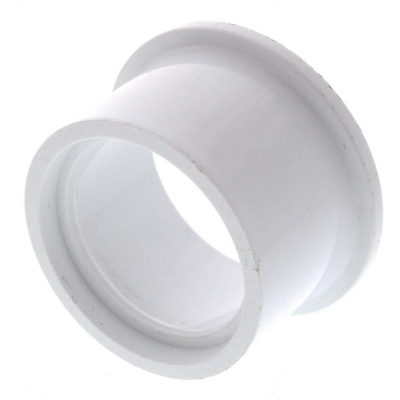

CHAGTFDC
| Part Number | CHAGTFDC |
| System of Measurement | Metric |
| Bearing Type | Plain |
| Plain Bearing Type | Flanged |
| For Load Direction | Combined Radial and Thrust |
| For Shaft Diameter | 12 mm |
| Bore Dia | 12 mm |
| Bore Dia Tolerance | 0 mm to 0.21 mm |
| For Housing ID | 17mm |
| Outer Dia | 17 mm |
| Outer Dia Tolerance | 0 to 0.11 mm |
| Length | 12 mm |
| Length Tolerance | -0.13mm to 0.13mm |
| Flange OD | 22mm |
| Flange Thickness | 2.5mm |
| Dynamic Radial Load | 15 lbf |
| Static Radial Load | 15 lbf |
| Dynamic Thrust Load | 15 lbf |
| Max Speed (X1000 rpm) | 0.12 |
| Material | PTFE Plastic |
| Lubrication | Not Required |
| For Shaft Type | Round |
| Shaft Mount Type | Slip Fit |
| Temperature Range | -200° to 450° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY Bearing part series CHAGTFDC is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CHAGTFDC
