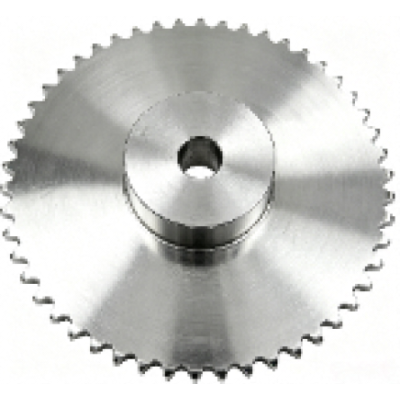

CHEBTBCD
Price $ 108.74
| Part Number | CHEBTBCD |
| System of Measurement | Inch |
| Sprocket Type | Standard |
| Bore Type | Finished |
| For Roller Chain Strand Type | Single |
| For Roller Chain Standard | ANSI |
| For Roller Chain Trade Size | 60 |
| Pitch | 3/4" |
| Number Of Teeth | 54 |
| For Shaft Diameter | 1 15/16" |
| Shaft Mount Type | Set Screw |
| For Shaft Type | Keyed |
| ID | 1 15/16" |
| OD | 13.33" |
| Overall Width | 1 3/4" |
| Hub Diameter | 4 1/4" |
| Keyway Width | 1/2" |
| Keyway Depth | 1/4" |
| Material | Steel |
| Includes | Two Set Screws |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
INTERCHANGE
The LILY Bearing part series CHEBTBCD is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CHEBTBCD
