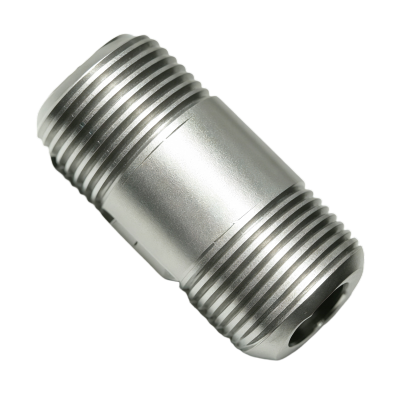

CHEEKBG
Price $ 2.51
| Part Number | CHEEKBG |
| System of Measurement | Inch |
| Shape | Straight |
| Type | Pipe, Adapter |
| Schedule | 40 |
| Threading | Threaded on Both Ends |
| Connection Type | Pipe |
| Connection Style | Threaded |
| Connection | BSPT Male × NPT Male |
| Pipe Size | 1/4 |
| Length | 1 1/2" |
| OD | 35/64" |
| ID | 0.364" |
| Wall Thickness | 0.088" |
| Construction | Seamless |
| Material | 6061 Aluminum |
| For Fitting Material | Aluminum |
| Specifications Met | ASME B1.20.1, ASTM B241 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | Not Compliant |
| For Use With | Air, Oil, Water |
INTERCHANGE
The LILY Bearing part series CHEEKBG is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CHEEKBG
