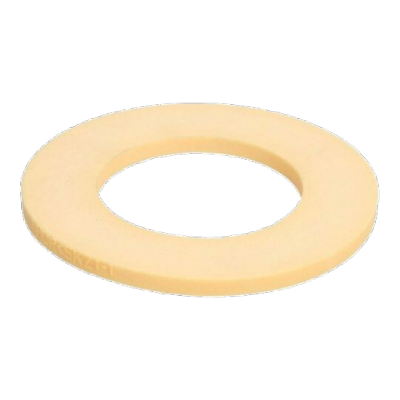

CIFFTG
| Part Number | CIFFTG |
| System of Measurement | Inch |
| Bearing Type | Plain |
| Plain Bearing Type | Thrust |
| For Load Direction | Thrust |
| For Shaft Diameter | 3/4" |
| Bore Dia | 0.7508" |
| Bore Dia Tolerance | 0" to 0.0008" |
| Outer Dia | 1 3/4" |
| Outer Dia Tolerance | 0.002" to 0.003" |
| Thickness | 1/8" |
| Thickness Tolerance | -0.005" to 0.005" |
| Dynamic Thrust Load | 4000 lbf |
| Material | 660 Leaded Bronze |
| Lubrication | Lubricated |
| Lubrication Method | Plugged |
| Lubricant | Graphite |
| For Shaft Type | Round |
| Temperature Range | -350° to 450° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY Bearing part series CIFFTG is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CIFFTG
2855T6
