CIGITDFG
| Part Number | CIGITDFG |
| System of Measurement | Metric |
| Bearing Type | Plain |
| Plain Bearing Type | Sleeve |
| For Load Direction | Radial |
| For Shaft Diameter | 15 mm |
| Bore Dia | 15.01 mm |
| Bore Dia Tolerance | 0 mm to 0.025 mm |
| For Housing ID | 21mm |
| Outer Dia | 21.04 mm |
| Outer Dia Tolerance | 0 to 0.025 mm |
| Length | 16 mm |
| Length Tolerance | -0.25mm to 0.25mm |
| Dynamic Radial Load | 1400 lbf |
| Static Radial Load | 1400 lbf |
| Max Speed (X1000 rpm) | 0.06 |
| Material | 863 Iron-Copper |
| Lubrication | Lubricated |
| Lubrication Method | Embedded |
| Lubricant | SAE 90 Oil |
| For Shaft Type | Round |
| Shaft Mount Type | Press Fit |
| Temperature Range | -15° to 300° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY Bearing part series CIGITDFG is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CIGITDFG
2868T356

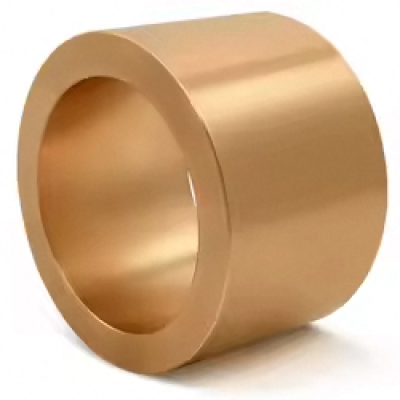

Design Features of CIGITDFG Bearing
CIGITDFG Bearing is made from a strong metal alloy with oil embedded in a porous structure, providing constant lubrication. The smooth surface reduces friction, and optional features like lubrication channels and seals can enhance its performance and lifespan. CIGITDFG bore dia is 15.01 mm. Its outer dia is 21.04 mm. CIGITDFG length is 16 mm. It's perfect for situations where regular bearings might fail under heavy pressure and loads.
What Benefits Can CIGITDFG Bearing Provide?
- High Load Capacity: It is built to handle heavy loads, making it great for tough industrial uses.
- Self-Lubricating: The oil inside keeps it lubricated, reducing maintenance and extending its life.
- Durable: It is made from strong materials, it resists wear and lasts a long time.
- Low Friction: The oil reduces friction, ensuring smooth operation and saving energy.
- Versatile: Suitable for many uses, including cars, industrial machines, and heavy equipment.
What Can CIGITDFG Bearing Be Used for?
- Automotive Industry: It is used in engines, transmissions, and other components subjected to high loads.
- Industrial Machinery: The bearing is ideal for machinery with high-pressure operations, such as presses and mills.
- Heavy Equipment: It is suitable for construction and mining equipment that operates under extreme conditions.
- Agricultural Machinery: It is perfect for farm equipment that requires robust and reliable bearings.
