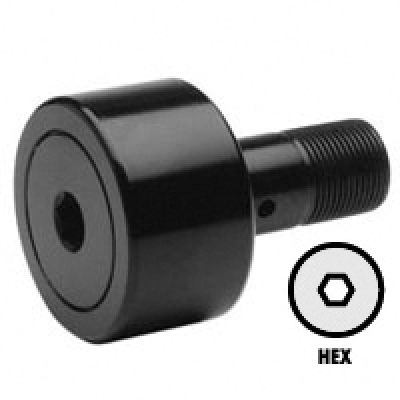

CR-2-1/4-B
Price $ 24.92
Part Number | CR-2-1/4-B |
Brand: LILY | Interchangeable With: SMITH |
System of Measurement | Inch |
For Load Direction | Radial |
Roller Shape | Cylindrical |
Internal Construction | Full Complement |
Type | Standard Stud |
Mounting Method | Hex Hole |
Seal Type | Unsealed |
Series | Stud Type Industrial Cam Followers |
Roller Material | Bearing Steel |
Roller Dia | 2.2500" |
Roller Width | 1.2500" |
Stud Dia | 0.8750" |
Stud Length | 2.0000" |
Threads | 7/8-14 |
Minimum Thread Length | 1 |
Shoulder Dia | 1-13/64 |
Lube Fitting Size | 3/16 |
Lubrication Fitting Size | 5/32 |
Lubrication Hole Location | 1/2 |
Clamping Torque | 2200 lbf |
Static Radial Load | 10700 lbs |
Dynamic Radial Load | 10370 lbs |
RoHS | Compliant |
REACH | Compliant |
Recom Bore | .8750 |
