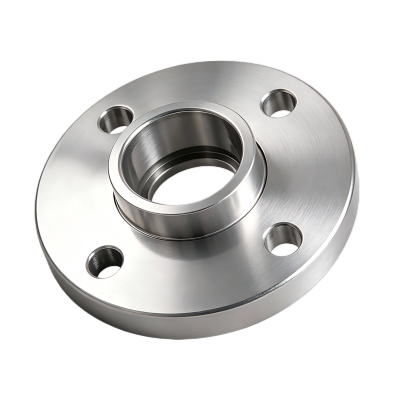

EDFAFKDEF
Price $ 42.85
| Part Number | EDFAFKDEF |
| System of Measurement | Inch |
| Shape | Straight |
| Type | Flange, Adapter |
| Material | 304 Stainless Steel |
| Pressure Class | 150 |
| Fabrication | Cast |
| Connection Type | Pipe |
| Connection Style | Slip-On Weld × Flanged |
| Gender | Female |
| Flanged Connection Surface | Flat |
| Pipe Size | 1 1/2 |
| Flange OD | 5" |
| For Fitting Schedule | 40 |
| For Fitting Material | 304 Stainless Steel, 304/304L Stainless Steel |
| For Pipe Schedule | 40 |
| For Pipe Material | 304 Stainless Steel, 304/304L Stainless Steel |
| For Bolt Diameter | 1/2" |
| Bolt Hole Diameter | 5/8" |
| Bolt Hole Number of | 4 |
| Bolt Circle Diameter | 3 7/8" |
| Maximum Pressure | 230 psi @ 72° F |
| Specifications Met | ASTM A341, MSS SP-51 |
| Weight | 2.301 lbs. |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
| For Use With | Air, Natural Gas, Oil, Water |
INTERCHANGE
The LILY Bearing part series EDFAFKDEF is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
EDFAFKDEF
