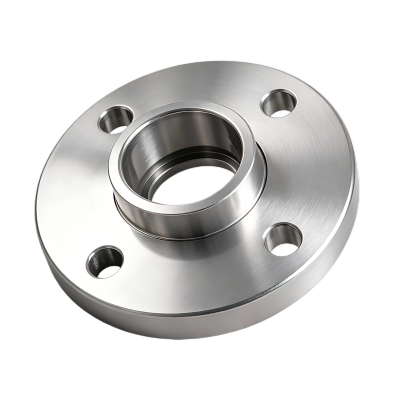

EECJKFFC
Price $ 98.07
| Part Number | EECJKFFC |
| System of Measurement | Inch |
| Shape | Straight |
| Type | Flange, Adapter |
| Pressure Class | 150 |
| Connection Type | Pipe |
| Connection Style | Threaded × Flanged |
| Flanged Connection Surface | Flat |
| Thread Type | NPT |
| Gender | Female |
| Pipe Size | 3/4 |
| Flange OD | 3 7/8" |
| For Bolt Diameter | 1/2" |
| Bolt Hole Diameter | 5/8" |
| Bolt Hole Number of | 4 |
| Bolt Circle Diameter | 2 3/4" |
| Maximum Pressure | 225 psi @ 72° F |
| Material | Brass |
| For Fitting Class | 125 |
| For Fitting Material | Brass |
| For Pipe Schedule | 40 |
| For Pipe Material | Brass |
| Specifications Met | ASME B1.20.1, ASME B16.24, ASTM B584, NSF/ANSI 61 |
| Environment | Food Industry |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
| For Use With | Air, Drinking Water, Natural Gas, Oil |
INTERCHANGE
The LILY Bearing part series EECJKFFC is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
EECJKFFC
