EEGIFKBHG
Price $ 288.67
| Part Number | EEGIFKBHG |
| System of Measurement | Inch |
| Shape | Straight |

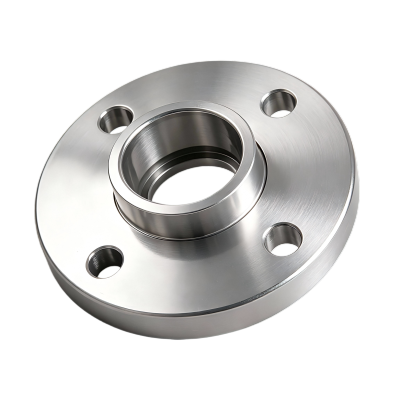

| Type | Flange, Adapter |
| Material | 304/304L Stainless Steel |
| Pressure Class | 150 |
| Fabrication | Forged |
| Connection Type | Pipe |
| Connection Style | Stub End × Flanged |
| Flanged Connection Surface | Flat |
| Pipe Size | 8 |
| Certification | Material Certificate with Traceable Lot Number and Test Report |
| Flange OD | 13 1/2" |
| For Fitting Schedule | 40 |
| For Fitting Material | 304 Stainless Steel, 304/304L Stainless Steel |
| For Pipe Schedule | 40 |
| For Pipe Material | 304 Stainless Steel, 304/304L Stainless Steel |
| For Bolt Diameter | 3/4" |
| Bolt Hole Diameter | 7/8" |
| Bolt Hole Number of | 8 |
| Bolt Circle Diameter | 11 3/4" |
| Maximum Pressure | 230 psi @ 72° F |
| Specifications Met | ASME B16.5, ASTM A182 |
| Weight | 28.22 lbs. |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
| For Use With | Air, Natural Gas, Oil, Water |
| Related Products | Thin-Wall Straight Adapters |
INTERCHANGE
The LILY Bearing part series EEGIFKBHG is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
EEGIFKBHG
