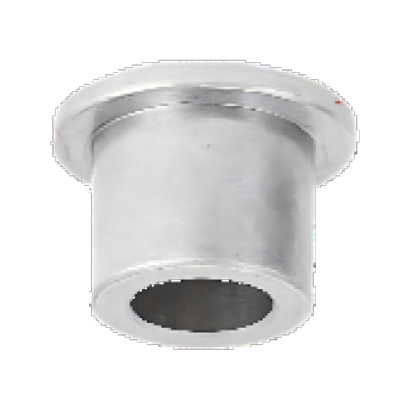

EEGIFKDEF
Price $ 69.24
| Part Number | EEGIFKDEF |
| System of Measurement | Inch |
| Shape | Straight |
| Type | Flange, Reducing Adapter |
| Material | 304/304L Stainless Steel |
| Pressure Class | 150 |
| Fabrication | Forged |
| Connection Type | Pipe |
| Connection Style | Slip-On Weld × Flanged |
| Gender | Female |
| Flanged Connection Surface | Raised |
| Pipe Size | 1 |
| For Flange Pipe Size | 1 1/2 |
| Flange OD | 5" |
| For Fitting Schedule | 40 |
| For Fitting Material | 304 Stainless Steel, 304/304L Stainless Steel |
| For Pipe Schedule | 40 |
| For Pipe Material | 304 Stainless Steel, 304/304L Stainless Steel |
| For Bolt Diameter | 1/2" |
| Bolt Hole Diameter | 0.62" |
| Bolt Hole Number of | 4 |
| Bolt Circle Diameter | 3 7/8" |
| Maximum Pressure | 230 psi @ 72° F |
| Specifications Met | ASME B16.5 |
| Weight | 3.72 lbs. |
| Maximum Steam Pressure | 150 psi @ 360° F |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | Not Compliant |
| For Use With | Air, Natural Gas, Oil, Steam, Water |
INTERCHANGE
The LILY Bearing part series EEGIFKDEF is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
EEGIFKDEF
