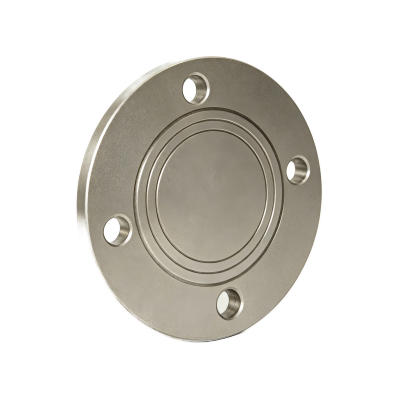

EEGJFKCFH
Price $ 426.72
| Part Number | EEGJFKCFH |
| System of Measurement | Inch |
| Shape | Cap/Plug |
| Type | Flange, Cap |
| Material | 316/316L Stainless Steel |
| Pressure Class | 150 |
| Fabrication | Forged |
| Connection Type | Pipe |
| Connection Style | Flanged |
| Flanged Connection Surface | Raised |
| Pipe Size | 10 |
| Certification | Material Certificate with Traceable Lot Number and Test Report |
| Flange OD | 16" |
| For Fitting Schedule | 40 |
| For Fitting Material | 316 Stainless Steel, 316/316L Stainless Steel |
| For Pipe Schedule | 40 |
| For Pipe Material | 316 Stainless Steel, 316/316L Stainless Steel |
| For Bolt Diameter | 7/8" |
| Bolt Hole Diameter | 1" |
| Bolt Hole Number of | 12 |
| Bolt Circle Diameter | 14 1/4" |
| Maximum Pressure | 230 psi @ 72° F |
| Specifications Met | ASME B16.5, ASTM A182 |
| Weight | 68 lbs. |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
| For Use With | Air, Natural Gas, Oil, Water |
INTERCHANGE
The LILY Bearing part series EEGJFKCFH is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
EEGJFKCFH
