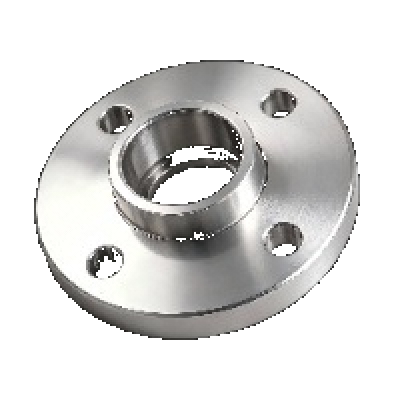

EEHAFKFFC
Price $ 89.85
| Part Number | EEHAFKFFC |
| System of Measurement | Inch |
| Shape | Straight |
| Type | Flange, Adapter |
| Pressure Class | 125 |
| Connection Type | Pipe |
| Connection Style | Butt Weld × Flanged |
| Flanged Connection Surface | Flat |
| Construction | Seamless |
| Pipe Size | 4 |
| Wall Thickness | 0.26" |
| Flange OD | 9" |
| For Bolt Diameter | 5/8" |
| Bolt Hole Diameter | 3/4" |
| Bolt Hole Number of | 8 |
| Bolt Circle Diameter | 7 1/2" |
| Maximum Pressure | 150 psi @ 72° F |
| Material | 356 Aluminum |
| For Fitting Schedule | 40 |
| For Fitting Material | Aluminum |
| For Pipe Schedule | 40 |
| For Pipe Material | Aluminum |
| Specifications Met | ASME B16.1 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
| For Use With | Air, Oil, Water |
INTERCHANGE
The LILY Bearing part series EEHAFKFFC is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
EEHAFKFFC
