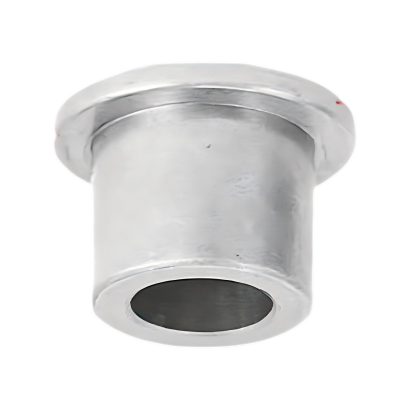

EFGAFKGFC
Price $ 14.94
| Part Number | EFGAFKGFC |
| System of Measurement | Inch |
| Shape | Straight |
| Type | Adapter, Stub End |
| Material | 304/304L Stainless Steel |
| Schedule | 40 |
| Connection Type | Pipe |
| Connection Style | Butt Weld × Flanged |
| Pipe Size | 3/4 |
| OD | 1 3/64" |
| ID | 0.824" |
| Wall Thickness | 0.113" |
| Construction | Welded |
| Flange OD | 1 11/16" |
| Length | 2" |
| For Flange Class | 150 |
| For Flange Material | 304 Stainless Steel, 304/304L Stainless Steel |
| For Pipe Schedule | 40 |
| For Pipe Material | 304 Stainless Steel, 304/304L Stainless Steel |
| Specifications Met | ASME B16.9, ASTM A403, MSS SP-43 |
| Weight | 0.24 lbs. |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
| For Use With | Air, Natural Gas, Oil, Water |
| Related Product | Flanges |
INTERCHANGE
The LILY Bearing part series EFGAFKGFC is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
EFGAFKGFC
